10km Distance Dredger Ship With PLC Control System

Categories Dredger Ship
Brand Name: Leader Dredger
Model Number: LD4500
Certification: ISO 9001
Place of Origin: China
MOQ: One Dredger
Price: Free Consultation
Payment Terms: L/C, T/T
Supply Ability: 20
Delivery Time: Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details: In Container Or Bulk Vessel
Type: Cutter Suction Dredger
Power Type: Diesel
Inch: 20 ~ 22 Inch
Dredging depth (m): 15
Main engine power (kw): 955
Auxiliary engine power (kw): 325
Pipe diameter (mm): 500
Application: Pond Dredging, Lake Dredging
Customized: Customized
Condition: New
Machinery Test Report:: Provided
Warranty of core components:: 1 Year
Condition:: New
Control System:: Hydraulic Control System
Marketing Type:: Hot Product 2020
Core Components:: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Work site:: River/Port/Lake/Coastal Area
Operation System:: Siemens System
Options:: anchor boom, spud carriage, swivel pipe, etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

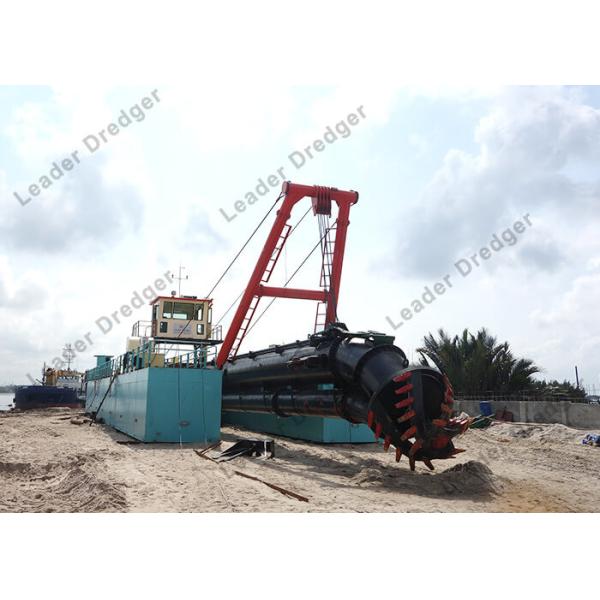

    10km Distance Dredger Ship With PLC Control System

    The Dredger Ship That Can Directly Discharge Dredged Materials Through Pipelines, The Longest Distance Is 10km


    1. Leader Dredger will provide before selling the sand cutter suction dredger:


    1, Consulting and design services


    2, Provide program support based on customer's working conditions


    3, Provide accessories recommendations based on customer requirements


    4, Site installation guide


    5, Overall debugging


    6, Pre-job training


    7, Tracking guidance service


    8, Provide one year after-sales


    9, Provide permanent accessories or consulting services


    Leader Dredger Factory


    2. Why Choose Leader Dredger dredger ship:


    1. Great Adaptability. The cutter suction dredgers can be widely used in river, lake, sea, reservoir and so on for sand/mud dredging, waterway cleaning and reclamaition work.


    2. High Efficiency. The cutter suction dredgers can dredge and discharge sand/mud at the same time without other ships for transportation.


    3. Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can be done in the operation cabin.


    4. The dredgers are dismountable. So they can be disassembled and assembled easily.


    5. Customized designs will be made based on customers' project requirements.


    6. All the Leader Dredger dredging equipment are built by skilled workers and inspected strictly to assure the high quality and durability.


    7. Best parts will be used for the dredgers, like world famous Cummins engines, Simens PLC control system.


    8. Professional engineers will be sent to the project site to insist the customers on the installation, commissioning, testing of the dredgers and training of operators.


    dredger ship


    3. Leader Dredger LD4500 dredger ship Technical Specifications

    A . Dredging Features


    Standard dredging depth(m)15m
    Maximum mixture capacity(m/h)4500m³/h
    Solid capacity(approx)900m³/h
    Dredging pump mode550/500mm

    B . Principal characteristics


    Overall length(m)38.5m
    Breadth(m)7.8m
    Draught(m)1.3m
    Discharge distance(m)2000m
    Total dry weight approx(MT)200MT
    Ladder length21m

    C . Dredge pump: Australia technology Pump


    By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC.Bigger working capacity, more efficiency, driven through gearbox.
    Maximum mixture capacity(m/h)4500m³/h
    Solid capacity(approx)900m³/h


    D . Engine


    Main diesel engine(Cummins)CAT 3512C 955kw
    Auxilary engineCAT C9.3 325KW
    Total fuel consumption≤205kg/hr
    Extra emergency generator set30kw(40Hp)

    4. Dredger Ship Features


    1. Hydraulic pumps drive cutter, winches spud rams


    2. Main engine drives pump through gearbox


    3. Pump inside engineroom


    4. Design of high production long distance and reliability, easy control, simple maintenance


    5. Australian technology pump


    6. Famous European-brand electric system and hydraulic system


    7. Engine room big and cool, and easy to maintain


    8. Dredge can be equipped with several options such as


    Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System


    Desgin Leader Dredger


    5. Hydraulic System: German Brand Hydraulic Parts:


    To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.


    Hydraulic System: German Brand Hydraulic Parts


    6.Leader Dredger dredger ship Customer


    dredger ship customer


    7. LD4500 dredger ship


    24 Inch Environment Dredging dredger ship With 955kw Engine Power
