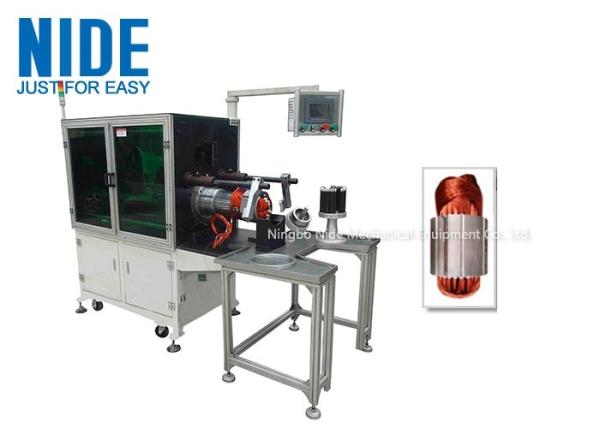

Horizontal Coil Stator Winding Inserting Machine / Automatic Stator Coil Insertor

Horizontal Coil Stator Winding Inserting Machine / Automatic Stator Coil Insertor

Quick Detail:

Description:

Horizontal Winding Inserting Machine is with horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting. Horizontal Winding Inserting Machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.

Coil inserting speed can be set at different section. Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.

Technical parameter:

Competitive advantages:

• Variety of application, easy operation.
• We have Overseas Service Center.
• Machine is controlled by PLC. All the parameter can be set in the touch screen.
• It is suitable for stators with different model number and dimension.
• The operation and tooling change process is easy.
• We could customize machine for our customer as per their requirement.
• We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

Operation step

1. Power on the machine
2. Insert the wire by winding form
3. Adjust the tooling according to different model stator
4. Put stator to the tooling
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press "start" button.
7. Machine will automatically do coil inserting.
8. Take out the stator

Stator samples made by this coil winding inserting machine
