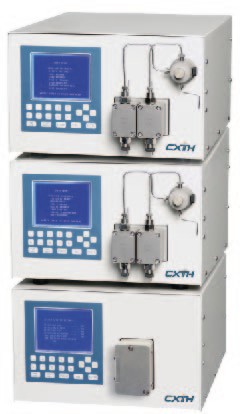

Preparative Gradient High Performance Liquid Chromatography HPLC System

Preparative Gradient High Performance Liquid Chromatography HPLC System

Description:

LC6000 preparative high performance liquid chromatography system can produce purifications of going to kg scale.

Applications:

Natural extracts synthetic mixtureschiral compounds etc

It can provide the highest chromatographic performance by combing with our dynamic axial compression columns.

Configuration List

Note:

1. The following pump is available for this system:

100ml/min,250ml/min,500ml/min,1000ml/min

2. Both injection valve and pump is available
3. Both prepacked column and DAC column is available

Technical parameter:

• Pump

Infusion Working Mode: Dual piston reciprocating pump

Pump Head:3000mL Stainless steel pump head

Max Working Pressure: 10 MPa

Flow Rate Range: ( 0 ~ 3000 ) mL / min

Flow Accuracy: ± 1.5 %

Flow Repeatability: RSD ≤ 1.0 %

Working Mode: Isocratic or Gradient Mode

• Detector

Wavelength Range: (190 - 700 ) nm

Light Source: D2 lamp (standard configuration), Tungsten lamp (optional available)

Wavelength accuracy: ± 2nm,

Wavelength repeatability: 0.4 nm

Detection Range: ( 0~2 ) AU

Baseline Noise: 3 X 10-5 AU

Baseline Drift: 1 X 10-3 AU/h

Competitive Advantage:

The Characteristics of LC3000-PCD Post-Column

Derivatization Analytical System

• Modular design

Optional single or double reaction core, which can be heated reaction at room temperature the reaction of two reactions;

Optional one, two or more derivatizing agent pumps

• Panel display, easy setup

Reactor core front panel display of the set temperature of the reaction and the actual temperature; Derivative front panel display of each reagent pump flow rate, pressure and pressure limit;

Competitive Advantage:

Preparative HPLC pump is double piston design

Developed server engine

Exported check valve and sealing ring

Providing high quality products for the customer

Beijing ChuangXinTongHeng Science and Technology Co., Ltd. is a high-tech enterprise which is dedicated to separation technology research and application. Founded in the year of 2000, CXTH people always keen on innovation and continuous improvement. With liquid chromatography technology as the core, we focus on developing new application field to meet different kinds of customers’ needs. This is our development concept. Conquering technical difficulty one after another, CXTH has become one of the largest research and manufacturing enterprise in the chromatographic products field.

"Things go to all lengths, often with the heart of Thanksgiving" is our motto of the proud. After ten years of hard work, now CXTH has become a medium-sized enterprise which total staff is more than one hundred people, the production and office area is more than 6000 square meters.

For many years, we pay more attention to the enterprise construction and technology accumulation, successively introduced
ERP, CRM, OA and other modern management modes into our company. We are awarded ISO9001:2000 enterprise management system certification. Some of our products have passed through the European Union CE certification. We have more than 20 invention, practical new-type patent and software copyright. We have won independent innovation golden medal of scientific instruments many times. Undertaken major national 11 new drug initiative project, in the special national support projects, we get the government support with energy conservation and emission reduction, innovation fund and etc special funds. CXTH has been named the ZOL gazelle enterprise and national high and new technology enterprise from 2003.

“Because of focus, so professional” confirm the constant innovation in liquid chromatography field 10 years of unremitting efforts and continuous innovation! Our Company will continue to create value for you
