ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

Categories	Lithium Ion Cylindrical Battery
Place of Origin:	Shenzhen zhuhai
Brand Name:	TAC OEM & ODM
Certification:	MSDS REACH ROHS
Model Number:	ICR10280 3.7V 200mAh
MOQ:	500 pcs for single cell , 50pack for battery packs
Price:	usd 1.0-2.0
Packaging Details:	meet UN38.3 Certification
Delivery Time:	7-10 days after order confirm for stock model
Payment Terms:	100% prepaid before shipping out
Supply Ability:	100000PCS EACH WEEK
Chemistry::	li-ion battery
capacity:	200 mah
voltage:	3.7-4.2v
lifecycle:	500 times
warranty:	12 months
size:	10*28mm

Contact Now

Add to Cart

Company Info.

Guang Zhou Sunland New Energy Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	200mAh	Standard discharge(0.2C5A) after Standard charge
1	Rated Capacity	Minimum	150mAh	Standard discharge(0.2C5A) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2V
5	Internal Impedance	≤120mΩ		Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Standard charge	Constant Current 0.2C5A Constant Voltage 4.2V
7	Standard discharge	Constant current 0.2C5A end voltage 3.0V
8	Fast charge	Constant Current 1.0C5A Constant Voltage 4.2V 0.01 C5A cut-off
9	Fast discharge	Constant current 1.0C5A end voltage 3.0V
10	Maximum Continuous Charge Current	1.0 C5A
11	Maximum Continuous Discharge Current	1.5 C5A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -10~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H. at the shipment state
		less than 3 months: -20~40℃
		Less than 7 day : -20~65℃
14	Cell Dimension	High:Max28.3 mm		Initial Dimension
		Diameter:Max10.2 mm

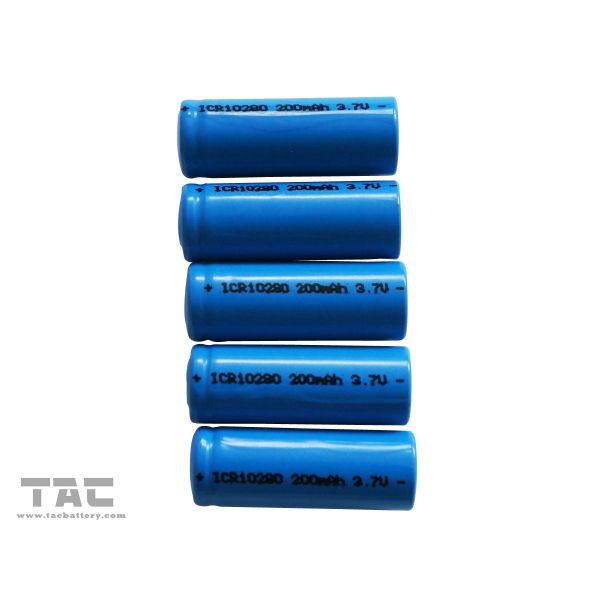

3.7V Lithium ion Cylindrical Battery ICR10280 200mAh

The battery backed with paper inner box and standard export carton

Tac Battery Production Line
