| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | HAIDA |
| Certification: | ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC |
| Model Number: | HD-A521 |
| Power: | Electronic |
| Port: | Shenzhen |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 300 Sets per Month Haida |
| Product Name: | packaging testing instruments |
| Max. Test Load: | 100 Kg |
| Frequency Range: | 60-300 rpm |
| Vibration Mode: | reciprocating (rotary); |
| Speed Mode: | DC speed regulation or AC frequency conversion speed regulation (optional); |
| Company Info. |
| Dongguan Haida Equipment Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

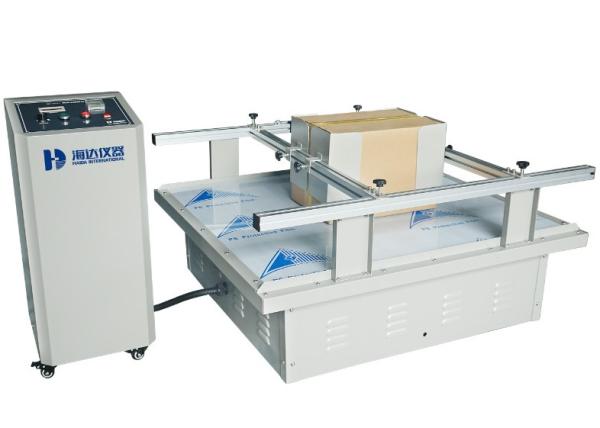

Package Testing Equipment for Vibration Simulation Transportation
Test
Usage
Simulation Transportation Vibration Tester which simulates a
transporation environment, is applicable to the vibration test of
toys, electronics, furnitures, gifts, ceramics, communications,
packagings, equipment, computer and automobile components, etc. Up
to EN71 ANSI,UL,ASTM ISTA
Specifications
| Item | Parameters |
| Simulation Transportation Vibration Tester | |
| Maximum test load | 100kg; |
| Frequency range | 60 ~ 300rpm (rev / min); |
| Amplitude range | 25.4㎜ (1 inch); |
| Vibration mode | reciprocating (rotary); |
| Simulated speed | 25 ~ 40km / h; |
| Working table size | 1000 × 1200mm, guardrail 300mm |
| Power consumption | 1 / 2HP; |
| Machine weight | about 80kg; |
| Environmental conditions | temperature 5 ~ 40 ℃, relative humidity≤85% RH; |
| Speed regulation mode | DC speed regulation or AC frequency conversion speed regulation (optional); |
| Power supply voltage | 220V 50Hz. |
Product Image
