DeepBlue “Lotus” house provides a real home to affordable prices and is a total built in solution. It is “Not only foldable but flexible” and can be used for multi purposes.

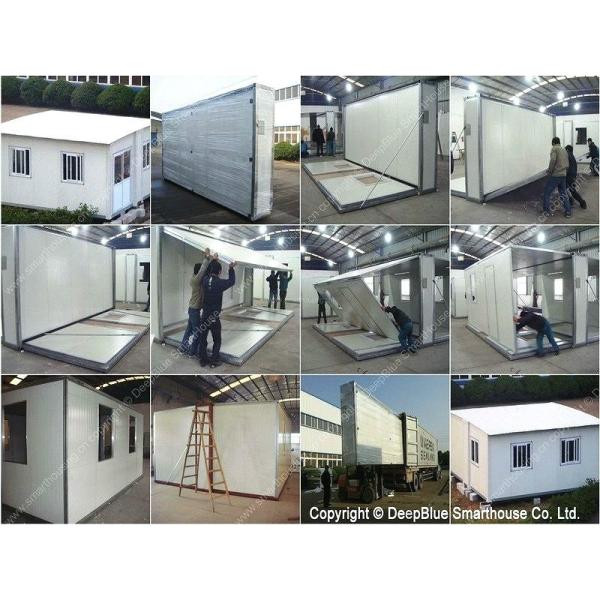

It requires no foundation and is easy and very quick to assemble (30min) by unskilled labors. (2-3) Not because of light, but Smart!!!

As a total built in solution all Doors, Windows, electrics etc. are already included.

In our vision we think green, and therefore carefully choose the materials built in our houses and make sure that they are recyclable, environment friendly and do not contain any chemical harming materials.

Quick Detail:

The benefits of our Lotus house:

1. Cost effective and affordable

2. Spacious and easy to assemble

3. Multifunctional usage

4. Green (Environmental Friendly)

5. Easy to transport and cost saving in logistic

6. Mobile with long service life time

Applications:

Hotel, House, Office, Shop etc.

Specifications

Our after-disaster portable emergency shelter is a foldable ,modular, multipurpose prefabricated housing solution that will serve your needs and requirements in the best possible manner. As one type of prefabricated house, it has all advantages of normal prefabricated house, but it's has much more advantages than normal prefabricated house.

General information is the following

Dimension and Weight

• External Dimension (L*W*H): 5800*5180*2620(2510)
• Internal Dimension(L*W*H): 5500*5080*2475(2400)
• Weight:2500kg per unit

Steel Framework

Material: Main frames are made from channel steel and RHS cube. Whole frames are well welded in the factory.

Surface working: all frames are painted Anti-rust paint.

Floor

Composition:

• External wainscot: 0.3mm steel sheet.
• insulation filling: EPS in a thickness of 30mm among steel transverse supports
• steam blockade: PE foil in a thickness of 80μm
• waterproof ply wood panel in a thickness of 18mm for dry area
• Glued PVC floor covering in a thickness of 1.5mm.

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk

Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel: 50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

Façade wall

Wall panels are made of 50mm with 10kg density EPS foam sandwich panel. All panels are fixed in factory and hinged with roofing panel. The thickness of steel for panel is 0.35mm outside and 0.35mm for inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door (1)

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. Doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

Windows (4)

Windows are made of: PVC, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm, sliding style.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V, mounted on the top frame in upper corners of shorter side wall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W 4 each
• flush-mounted sockets 220 V 6each
• flush-mounted switches 220 V 2each

Package:

Specification:
