Precise PCD Grinding Machine With Grinding Wheel Traveling Range 170mm

Efficient PCD Grinding Machine For Precise Grinding Grinding Wheel Traveling Range 170mm

Product Description:

PCD Grinding Machine is a precision CNC grinding machine for PCD/PCBN materials and PCD/PCBN tools. It is designed for grinding hard materials like super hard PCD/PCBN materials such as PCD, PCBN, tungsten carbide, ceramic etc. It can be used for grinding PCD/PCBN tools, inserts, milling cutters, reamers, drills, etc. with high accuracy and high efficiency.

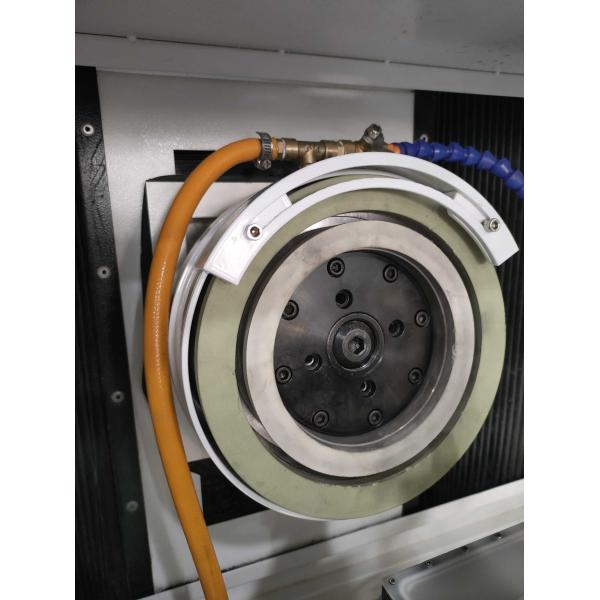

The machine is equipped with a 2.2kw spindle motor, which is capable of high speed, accurate and precise grinding. The grinding wheel oscillation frequency can be adjusted from 0 to 45/min for different grinding requirements. The maximum image magnification of the machine is up to 45-250 times with digital zoom, and the cross table swiveling angle can be up to 270°. The maximum grinding wheel size is 150*40*40mm(D*H*T), providing a large grinding area for grinding PCD/PCBN materials.

Features:

• PCD Grinding Machine: PCD/PCBN materials grinder, PCD grinder
• Pixel Size: 3.75um*3.75um
• Optical Tube Distance: 300mm
• Spindle Speed: 0-42000RPM (adjustable)
• Grinding Wheel Traveling Range: 170mm
• Grinding Pressure: 0-450N (adjustable)

Technical Parameters:

Applications:

The PCD Grinding Machine, produced by CTSTC and model number ZT-90CNC, is a professional equipment for grinding PCD/PCBN materials. It has a cross table with a size of 210*160mm and 4T grooves. The grinding wheel can be adjusted to a height of 140mm, and the dimension of the machine is 1200*1168*1530mm(L*H*W), with an optical tube distance of 300mm and cross table swiveling angle of 270°. Moreover, it is certified with CE and the minimum order quantity is 1 with plywood box packaging and delivery time of 45-60 days. Payment terms include TT/LC/Western Union.

This PCD Grinder is widely used in the processing and grinding of PCD/PCBN materials, and is particularly suitable for the grinding of PCD materials. It has a wide range of applications and is an ideal choice for grinding PCD/PCBN materials.

Customization:

Product features:

• Model Number: ZT-90CNC
• Place of Origin: CHINA
• Certification: CE
• Minimum Order Quantity: 1
• Packaging Details: plywood box
• Delivery Time: 45-60 days
• Payment Terms: TT/LC/Western Union
• Net Weight: 1450kgs
• Spindle Speed: 0-42000RPM(adjustable)
• Grinding Wheel Traveling Range: 170mm
• Grinding Wheel Inclination: -13°~+24°
• Spindle Power: 2.2kw

CTSTC provides custom PCD grinding machine, PCD grinder, PCD grinding machine with model number ZT-90CNC. It is certified with CE, and the minimum order quantity is 1. The packaging is plywood box and delivery time is 45-60 days. The payment terms include TT/LC/Western Union. The net weight is 1450kgs. The spindle speed is adjustable from 0 to 42000RPM. The grinding wheel traveling range is 170mm and the grinding wheel inclination is -13°~+24°. The spindle power is 2.2kw.

Support and Services:

PCD Grinding Machine technical support and service includes:

• 24/7 customer service and technical support
• On-site installation and maintenance services
• Regular maintenance and tune-up services
• Repair services for any hardware or software issues
• Replacement parts and components

Packing and Shipping:

Packaging and shipping of PCD Grinding Machine:

The PCD Grinding Machine is packaged in a wooden box with foam padding to protect the machine from impacts and shocks during transport. The machine is then secured to a pallet with straps and sealed for additional protection. The pallet is then loaded onto a truck or container for shipping.
