Factory Price Sinotruk HOWO 6x4 Tractor Truck With 10ton Folding Crane

Categories Truck Mounted Crane
Brand Name: HOWO
Model Number: ZZ4257V3847B1
Certification: CE, ISO9001, CCC
Place of Origin: Jinan
MOQ: 1
Price: USD38888-42000
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Delivery Time: 20days
Packaging Details: in nude, polish with wax
Drive Wheel: 6x4
Capacity (Load): 30-40ton
Emission Standard: Euro2
Condition: New
Transmission Type: Manual
Engine model: WD615.47
Front Axles: 9TON
Rear Axles: 16TON
Max speed: 90km/h
Tires: 12.000R20 Steel ,10+1 Spare
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

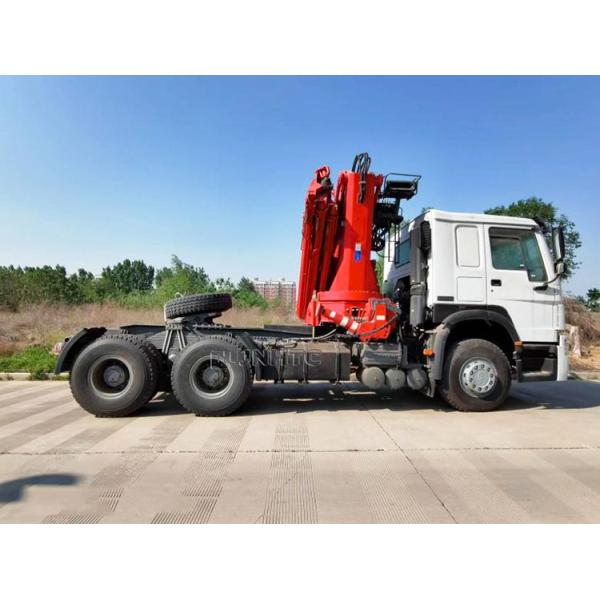

Factory Price Sinotruk HOWO 6x4 Tractor Truck With 10ton Folding Crane

Factory Price Sinotruk HOWO 6x4 Tractor Truck with 10ton Folding Crane


Detailed Photos

1, Throttle Control System Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration
and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2, End position automatic hook device Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3, Hoisting overwinder device If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder
device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope. 4,Slewing locking device Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
3 Axles 12 weheels container 50 tons heavy duty Van Semi Trailer 0


Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.


Product Parameters



According to clients' requirements, we can customize different loading capacity and volume.

ModelZZ4257V3847B1
EngineEngine model: WP12.400E201, Euro 2,400hp.emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling,common rail
ClutchSINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission

Transmission, model HW19710, 10 forward and 2 reverse,with HW70PTO

Ratio: 4.8

Front AxleVGD95*1, 9000kgs loading capacity
Rear AxleHC16*2, 16000kgsx2 tons loading capacity
SteeringBOSCH, left hand drive,hydraulic steering with power assistance
ABSWithout ABS
Wheels&TyresTypes: 12.00R20,10 pcs+ 2 pc spare tire
Driver'sCabBrand new HW76 cabin, two seats,1 sleeper, with A/C
Dimensions inmm

Wheel base (mm): 3800+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/725

Approach angle(°):16

Departure angle(°):70

Overall Dimension (mm): 7500x2550x3250mm

Weight in kg

Rated loading capacity at fifth wheel (kg):15660

Dead weight (kg):9280

Gross vehicle weight (kg):25000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

Performance

Maximum driving speed(km/h):102(reference data)

Maximum gradeability (%):33

Minimum ground clearance(mm):265

Minimum turning radius (m):18.5

Fuel consumption(L/100km):40(reference data)

Others

Oil tanker:400L aluminum alloy tanker

Bumper:High bumper, metal

Kingpin: 90#

Others: Inter cooler protector, reversing buzzer, fire extinguisher, rear tow hook

Color:White/Red/Yellow/Green/Blue/Black optional





Product Description:

1. Competitive price
2. Strong body
3. Quick parts
4. Truck sale from factory


What we can do for customers:

1. The satisfied product with high level standard;

2. The full aspect service from order to shipping;

3. Give customer most suitable advice when customer has special needs for your transportation or construction;

4. Help customer to get the related spare parts of trailer or tractors if customer needs.


Packaging & Shipping

3 Axles 12 weheels container 50 tons heavy duty Van Semi Trailer 6

3 Axles 12 weheels container 50 tons heavy duty Van Semi Trailer 7

3 Axles 12 weheels container 50 tons heavy duty Van Semi Trailer 8


Company Profile

3 Axles 12 weheels container 50 tons heavy duty Van Semi Trailer 9


FAQ

Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q: How you can ensure you have deliveried goods to customers ?

A: We will give you the complete shipping information details for you to confirm.
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
