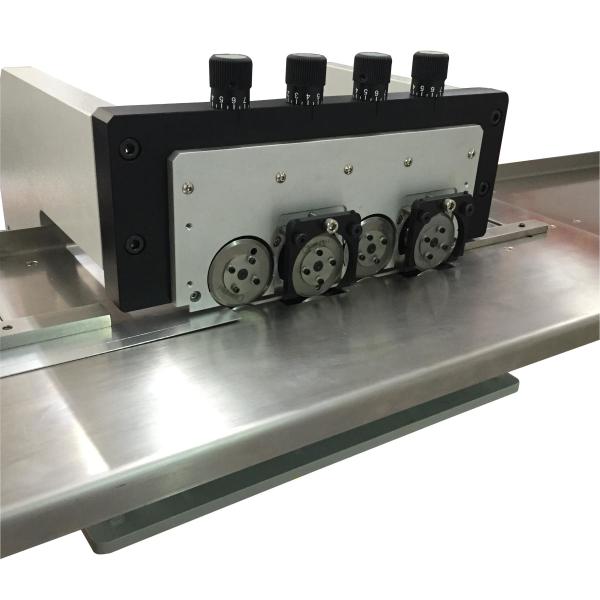

PCB Depanelizer LED Lighting Aluminium Board With Multi-Blades

PCB Depanelizer LED Lighting Aluminium Board With Multi-Blades​ Feature:

1. The guide can be adjusted vertically to suit different LED boards.
2. Clearance between the circular blades can be precisely
adjusted by the knob.
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to the customer's specifications.
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect.

7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)

Specification :

The Longest Minimize: No limited

Minimize thickness: 1.0-3.5mm

Platform: 1.5 M /2.4 M length

Minimize Speed: 0-520mm/s

Machine Size: 40*40*34 cm

Machine Weight: 70Kg

Max PCB width: 12mm

SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipment, it provides high-end PCB manufacturing machines for industrial factories in this word.

SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D, production, sales, and service in one line.

SMTfly head office is located at Ganghuaxing industrial park, Fuyong Town, Shenzhen.

Adhere to the "customer as the center", meet the needs of the electronic industry customers by technological innovation & management optimization.

SMTfly help you soar!
