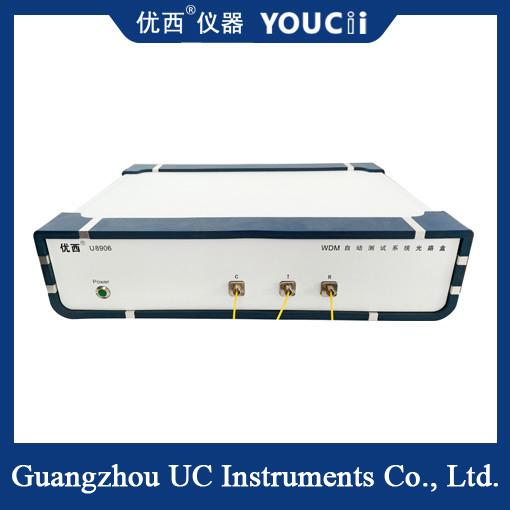

DWDM Device Scanning And Single Point Test Integrated System

DWDM Device Scanning And Single Point Test Integrated System

System overview:

The system is a comprehensive automatic test system that integrates scanning and single point test for DWDM devices.

The system integrates the scanning mode of the traditional adjustable light source + dual-channel optical power meter with the point measurement mode of the ITU light source + optical power meter, effectively improving the overall test efficiency of the product and reducing the equipment input cost and labor cost.

In addition, the use of optical box to compress the station equipment space, improve the cleanliness of the station. In the testing process, the system is automated and processed, which is conducive to staff training and anti-stay and anti-error.

Working principle:

According to the product type, the adjustable light source and ITU light source in different band range are selected, and the test specifications of the corresponding product are set. During the operation, the point parameter instrument server can effectively schedule the resources of the server by reasonable algorithm mechanism according to the request of each client, and realize real real-time parallel scanning for the scanning parameter system. After all parameters are tested, the system analyzes, saves and automatically determines the test data, and displays the test results on the test program interface.

Test principle:

"To do import substitution, to create national brand" is the journey that Uc Instruments is brave to climb and the goal of continuous progress.

Guangzhou UC Instruments., Co. Ltd. was founded in March 2009 and has been recognized as a high-tech enterprise in Guangdong Province.

Guangzhou UC Instruments., Co. Ltd. is willing to join hands with chip manufacturers, device manufacturers, equipment manufacturers, communication operators and data centers in the optical communication industry, as well as teaching and research units in the industry, to create a brilliant industry. To provide industry users with "UC" independent brand measurement instrument products and services, and automated test system customization services.

We warmly invite customers to choose our products and services. We will try our best to do a good job in the spirit of craftsmanship in our products, with enthusiasm to do a good job in our services, and strive to become the majority of users in the field of product measurement and testing strong backing.

The full range of Youxi instrument products are:

8 series passive measuring equipment: light source series, optical power meter series, optical attenuator series, plug back loss meter series and optical polarization generator and optical switch series, etc.

9 series of active measuring equipment: BER series, optical oscilloscope series, clock recovery instrument series, LIV measuring system and 10G/100G/400G optical module test and evaluation board series.
