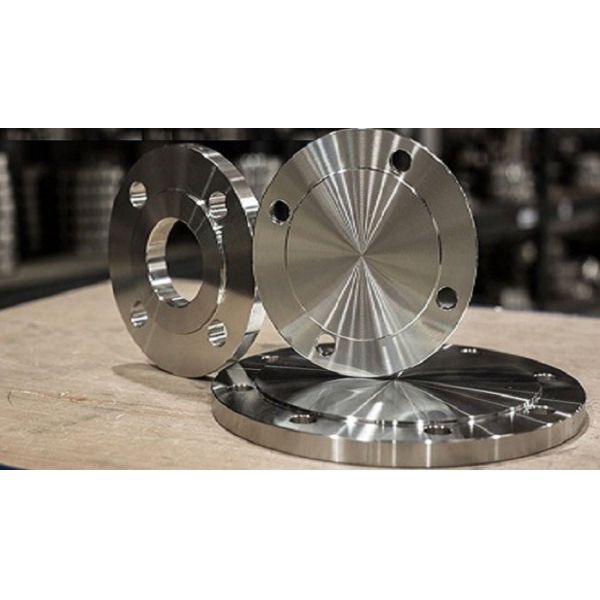

Product Description:
FLANGE DIN EN 1092-1 is a type of flange standard by European
standards, which is used for pipe connections. The flange is made
of various materials, including carbon steel, RST37.2, S235JR,
P245GH, P250GH and C22.8. Different processing methods are
available, such as forging, casting and welding. In addition, the
flange is available in a wide range of sizes, ranging from DN15 to
DN2000, including DN80, DN100, DN125, DN150, DN200, DN250, DN300,
DN350, DN400, DN450. For better protection from corrosion, it can
also be coated with black paint, anti-rust paint or yellow
transparent. The flange is also certified by EN 1092-1 standard,
and it is available in six types, including TYPE01A FLAT FLANGE,
TYPE01B FLAT FLANGE, TYPE02 TAPERED FLANGE, TYPE05 LAPPED FLANGE,
TYPE11 WELDING NECK FLANGE and TYPE12 HUBBED SLIP ON FLANGE.
Features:
- Product Name: FLANGE DIN EN 1092-1
- Coating: Black Paint, Anti-rust Paint, Yellow Transparent
- Processing methods: Forged Flange, Cast Flange
- Material: CS, RST37.2, S235JR, P245GH, P250GH, C22.8
- Pressure: PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160
- Standard: ANSI, DIN, JIS, GOST, En1092
- EN1092-1 PN16 TYPE02 LOOSE FLANGE
- EN1092-1 PN16 TYPE01B FLAT FLANGE
- EN1092-1 PN16 TYPE01 PLATE FLANGE
Technical Parameters:
| Attribute | Technical Parameter |
|---|
| Type | Welding Flange |
| Pressure | PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160 |
| Size | DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350,
DN400, DN450 |
| Material | CS, RST37.2, S235JR, P245GH, P250GH, C22.8 |
| Face Type | RF, FF, RTJ |
| Processing methods | Forged Flange, Cast Flange |
| Coating | Black Paint, Anti-rust Paint, Yellow Transparent |
| Standard | ANSI, DIN, JIS, GOST, En1092 |
| Type | Welding Flange |
| Special | Type01 plate flange, Carbon Steel Flange, EN1092-1 PN16 TYPE01B
FLAT FLANGE |
Applications:
FLANGE DIN EN 1092-1
FLANGE DIN EN 1092-1, also known as type01 plate flange, is a high
quality product manufactured by XF. It has been approved by PED and
ISO CERTIFICATE, and the minimum order quantity is 5TON. Packed in
standard export seaworthy package, the delivery time is within
15-45 DAYS, and the payment terms are L/C, D/A, D/P, T/T, with
supply ability of 1000-5000 TONS/MONTH. The face type available
includes RF, FF, RTJ. The material used are CS, RST37.2, S235JR,
P245GH, P250GH, C22.8, with the processing methods of Forged Flange
and Cast Flange. The coating of FLANGE DIN EN 1092-1 is Black
Paint, Anti-rust Paint, Yellow Transparent, and the type is Welding
Flange.
Packing and Shipping:
Packaging and Shipping of FLANGE DIN EN 1092-1:
- Each piece of flange is carefully packed in poly bags, bubble wrap
and cartons.
- The pieces are then placed in strong wooden boxes or crates for
shipping.
- Special care is taken to ensure that the products are well
protected during transit.
FAQ:
- Q: What is the brand name of FLANGE DIN EN 1092-1?
- A: The brand name of FLANGE DIN EN 1092-1 is XF.
- Q: What is the model number of FLANGE DIN EN 1092-1?
- A: The model number of FLANGE DIN EN 1092-1 is EN1092 TYPE01A.
- Q: Where does FLANGE DIN EN 1092-1 come from?
- A: FLANGE DIN EN 1092-1 comes from China.
- Q: What are the certifications of FLANGE DIN EN 1092-1?
- A: The certifications of FLANGE DIN EN 1092-1 are PED and ISO
CERTIFICATE.
- Q: What is the minimum order quantity of FLANGE DIN EN 1092-1?
- A: The minimum order quantity of FLANGE DIN EN 1092-1 is 5TON.
