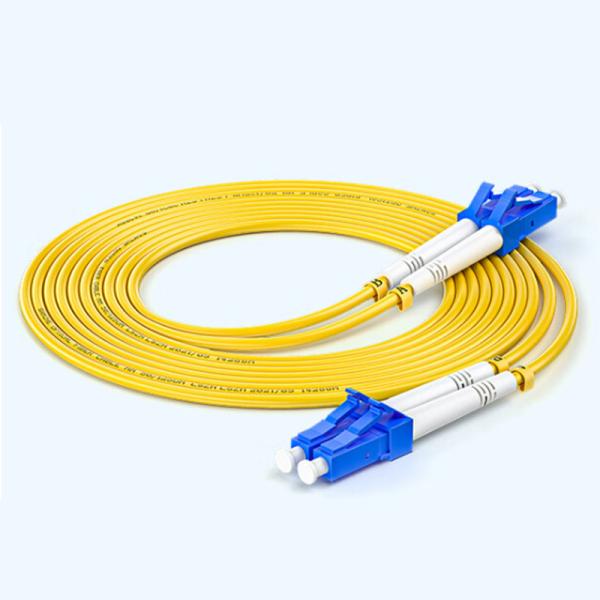

High Speed Data Transmission Optical Fibre Patch Cable ≤ 0.2dB Insertion Loss

High-Speed Data Transmission Optical Fibre Patch Cable ≤0.2dB Insertion Loss

Product Description:

• Fiber Optic Patch Cord is a kind of optical fiber connector used to connect two optical fibers to form an optical fiber connection path. It can be used in fiber optic networks, fiber to the home (FTTH) systems, fiber optic instrument systems and other fiber optic systems.

• It is composed of two parts: fiber optic adapter and optical fiber connector. The fiber optic adapter is used to tightly fix the optical fiber connector and the optical fiber, and the optical fiber connector is used for optical connection.

• The working temperature of the cable is from -20℃ to +70℃, and the durability can reach more than 1000 times. The connector polishing can be PC, UPC or APC.

• The diameter of the cable can be 0.9mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm, 16.0mm, 18.0mm and 24.0mm. The cable return loss is more than 45dB. In addition, Fiber Optic Patch Cord can also be used in fiber optic splitter and other fiber optic systems.

Features:

• Product Name: Fiber Optic Patch Cord
• Cable Application: Data Center/ Telecommunication/ CATV/ FTTH/ FTTX/ LAN/ WAN/ Test Equipment
• Cable Return Loss: ≥45dB
• Cable Length: 0.5m/ 1m/ 2m/ 3m/ 5m/ 10m/ 15m/ 20m/ 30m/ 50m/ 100m
• Connector Type: LC/ SC/ FC/ ST/ MU/ MTRJ/ DIN/ D4/ SMA/ E2000/ MPO/ MTP
• Cable Operating Temperature: -20℃~+70℃
• Fiber Optic Pigtail
• Fiber Optic Distribution Box

Technical Parameters:

Applications:

• Fiber Optic Patch Cord is a type of cable that is used to connect two components in an optical fiber system. It is mainly used in data center, telecommunication, CATV, FTTH, FTTX, LAN, WAN and Test Equipment. It is made up of two connectors and a cable.

• The connectors are available in different types such as LC/ SC/ FC/ ST/ MU/ MTRJ/ DIN/ D4/ SMA/ E2000/ MPO/ MTP. It is available in different cable jackets such as PVC/LSZH/OFNP/OFNR/Plenum. It offers low insertion loss of ≤0.2dB and operates at a temperature range of -20℃~+70℃.

• Fiber Optic Patch Cord is widely used in data centers, telecommunication, CATV, FTTH, FTTX, LAN, WAN and Test Equipment. It is used to connect two components in the optical fiber system. It is used in the construction of Fiber Optic Patch Panel, Fiber Optic Distribution Box, Fiber Optic Splitter, Fiber Optic Connector, Fiber Optic Adapter and Fiber Optic Coupler.

Packing and Shipping:

The fiber optic patch cord is packaged in a cardboard box and protected with bubble wrap.

The box is then securely sealed with reinforced tape to prevent any damage or contents from being lost during transit.

The package is shipped using a reliable shipping service with tracking information provided.

Support and Services:

Fiber Optic Patch Cord Technical Support and Service

We provide technical support and services for all of our fiber optic patch cord products. Our knowledgeable and experienced technical staff can help you select the right product for your requirements. We can also assist with installation and troubleshooting. We provide a variety of services including:

Product selection advice

Product compatibility assistance

FAQ:
