Flash Cable H07bz5-F Charging Vehicles with Evi-2 Halogen-Free Elastomeric Insulation, Under Evm-1 Polyurethane Sheath E

Categories Storage & Charging Cable
Brand Name: ECHU
Model Number: H07BZ5-F
Certification: TUV SUD
Place of Origin: China
MOQ: 100M
Price: USD0.101-USD10.954/m
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000KM/week
Delivery Time: 10day after receiving payment
Packaging Details: splint reel/ splint box
Conductor: Multiple stranded conductor
Application: for connection set for conductive charging of electric vehicles
Rated Voltage: AC 450/750V, DC1000V
Rated Temp: -40-+90℃
Conductor Material: Tinned copper or bare Copper
Conductor Type: stranded
Insulation: EV1-2
Reference Standard: EN50620:2017, IEC62893-3:2017
Jacket: PUR
Flmae Test: IEC60331-1-2
Min Bending radius: 6xD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

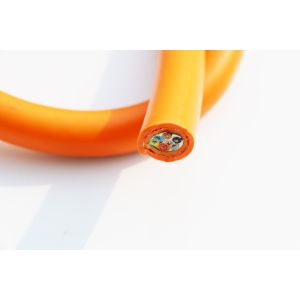

Flash Cable H07bz5-F Charging Vehicles with Evi-2 Halogen-Free Elastomeric Insulation, Under Evm-1 Polyurethane Sheath E

Charging Cables

·Applications:
applicable to charging cables of rated voltages up to and including AC 450/750V or DC 1000V for connection set for conductive charging of electric vehicles.

·Properties:
Conductor:Multiple stranded conductor
Insulation:EVI-2
Jacket:PUR

◆ PRODUCT DESCRIPTION:
Temperature range:-40℃~90℃
Rating voltage:AC 450/750V/DC 1000V
Reference standard:EN 50620:2017,IEC
62893-3:2017
Flame Test:IEC 60331-1-2
Min Bending radius:6xD

TypeSizeConductor Stranded OD mm(Ref.)Over diameter Non Shielded mm (Ref)Max.Conductor resistance mΩ/m@20℃
H07BZ5-F 62893IEC1233x1.5+(0~6)x(0.5~1.0)1.69.23.3
3×2.5+10-6)x(0.5~1.02.1117.98
3x4.0+(0-6)x(0.5~1.02.611.84.95
3x6.0+10-6)x(0.5~1.03.413.53.3
3x10.0+(0~6)x(0.5~1.0)4.616.51.91
3x16.0+(0~6)x(0.5~1.0)5.919.51.21
5x2.5+(0~6)x(0.5~1.0)2.1147.98
5w40+10-6)x(0.5~1.02.615.54.95
5x6.0+(0~6)x(0.5~1.0)3.4173.3
5x10.0+(0~6)x(0.5~1.0)4.620.51.91
5×16.0+(0~6)x(0.5~1.0)5.924.51.21
