| Categories | PVC Sheet Panel |
|---|---|
| Place of Origin: | Chongqing, China |
| Brand Name: | NIUBO |
| Model Number: | pvc soft board |
| Packaging Details: | The product is packed in pallet |
| Supply Ability: | 200 Piece/Pieces per Week |
| MOQ: | 100 kilograms |
| Price: | $1.80/kilograms 100-299 kilograms |
| Material: | PVC |
| Thickness: | 0.8-6mm, 0.8-6mm/Customized |
| Size: | Customized |
| Tensile strength: | MD≥220 CD≥200 |
| Raw material: | PVC |
| Density: | 1.25~1.35g/cm3 |
| Surface: | Plain/Flat/Ribbed |
| Packing: | Pallet,carton box,Bulk Roll |
| Cold resistant: | Coated Tarpaulin |
| Application: | Table/Office/House |
| Logo: | Customized Logo Acceptable |
| Certificate: | BV,REACH,ROHS,ISO90000 |
| Port: | China main port |

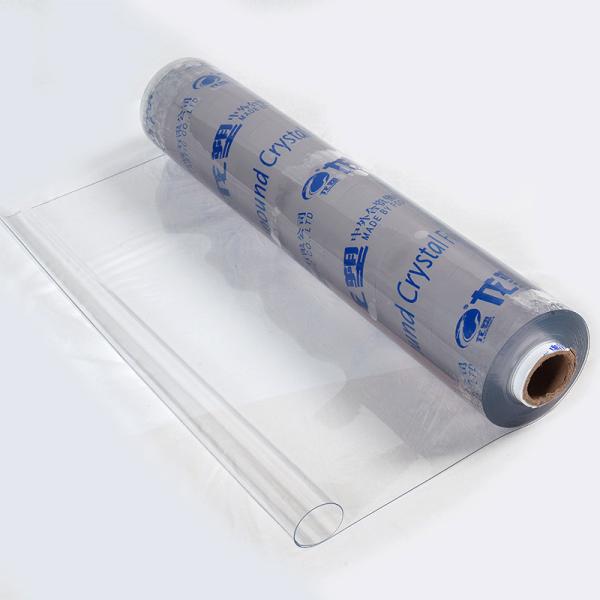

Soft Transparent Flat PVC Sheet Panel For Tablecloth Curtain ROSH Certificated
Anti-Static Super Clear Soft Flexible Fabric Protective Plastic PVC
Sheet
"Coseal"-One stop shop for "All" of your PVC solutions!
PVC SHEET, TRIP CURTIAN, MAT, PIECE, and FILM, etc.
1.Purpose
1. Used for covering,
2. Used for printing,
3. Used for package,
4. Used as soft glass,
2.The scope of application
Mainly used in the table cloth of table.
Instead of glass windows
Curtain of super-market, factory or restaurants.
To protect your furniture.
3.Characteristics
Easy to clean
Non-toxic, tasteless, green products.
Adapt to the joint of all kinds of plane and crooked surface.
Adapt to the process of all kind of suction.
Product have the performance of heat resistant and wearable.
Able to produce smooth surface, printing surface, grain surface,
frosted surface and so many kinds.
Technical Data:
| PROPERTY | Standard | Unit | Value |
| Shore A hardness | EN ISO 868 | Sh A | 80 |
| Tearing resistance | DIN 53515 | N/mm | 50 |
| Tensile strength at break | ASTM D 638 EN ISO 527 | N/mm² | 16 |
| Elongation at break | % | 340 | |
| Residual elong. (after break) | % | 68 | |
| Thermal conductivity | ASTM C 177 | W/m.K | 0,16 |
| Cold bend brittle temperature | ISO 8570 | °C | -35 |
| Usage temperature range | EN 1876 | °C | -15/+50 |
| Vicat softening temperature | EN ISO 306 | °C | 50 |
| Specific heat capacity | ISO 11357 | kJ/kg.K | 1,6 |
| Sound reduction | DIN 52210 | dB | >35 |
| Reaction to fire | CFM | ||
| Light transmittance | ASTM D 1003 | % | 85 |
| UV/IR filter | AWS | Filter | - |
| UV resistance | ISO4892 | - | Yes |
| Charge buildup | IEC 61087 | Sparks | Yes |
| Surface resistivity | IEC 60093 | .1012 Ω/ | 40 |
| Water absorption | EN ISO 62 | % | -0,2 |
| Density | ASTM D 792 | g/cm3 | 1,22 |

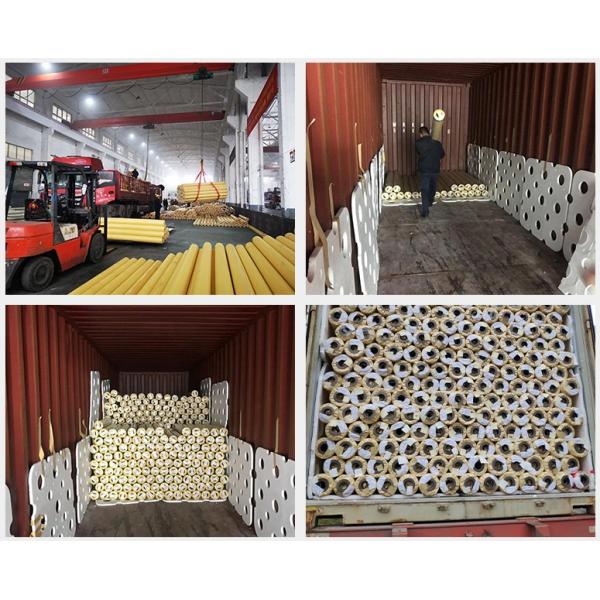

Package:
Packaging & Delivery
Packaging Details
Common package for plastic sheet:
1. PE bag + pallet Kraft paper and PE wrapping + protection corner.
2. Packaging size: according to customer's request.
|
