1. MODEL:TD05 Forward

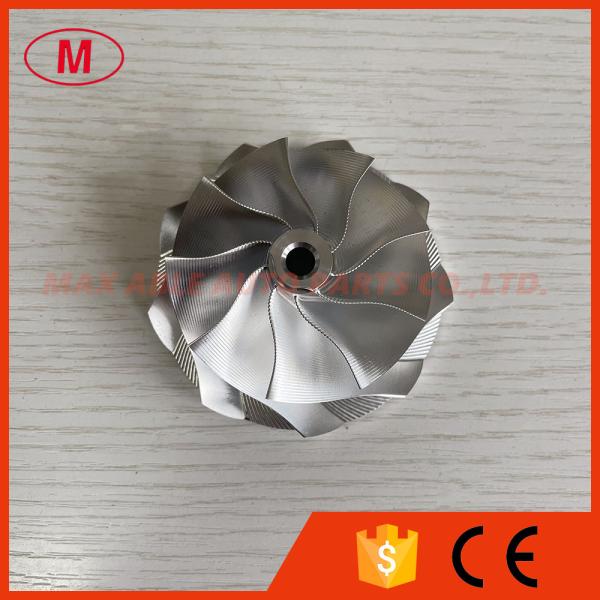

2.TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:14.10mm

Inducer:61.75mm

exducer:76.60mm

Tapered tip exducer:79.36mm

Tip height:8.15mm

Superback:1.67mm

bore size :6.50mm

bore type:through

Overall height:35.00mm

Cutback:6.50mm

Trailing Angle:35 degree

SP height angle:0.00

Splitter height:0.00mm

Blade height:29.50mm

9+0 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:11.55 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
