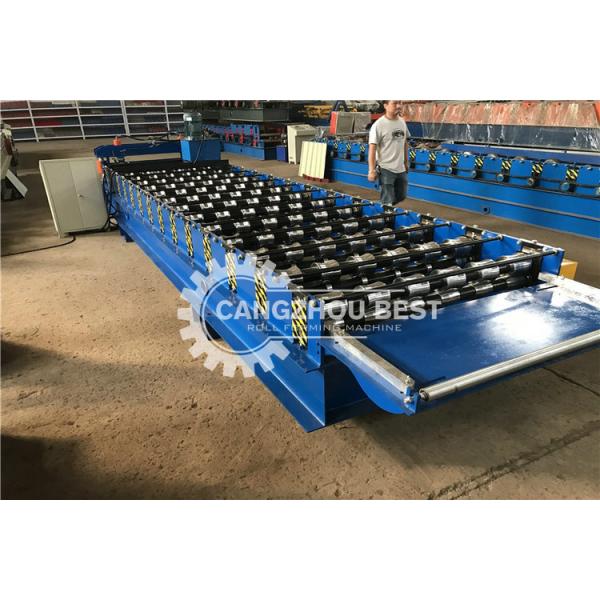

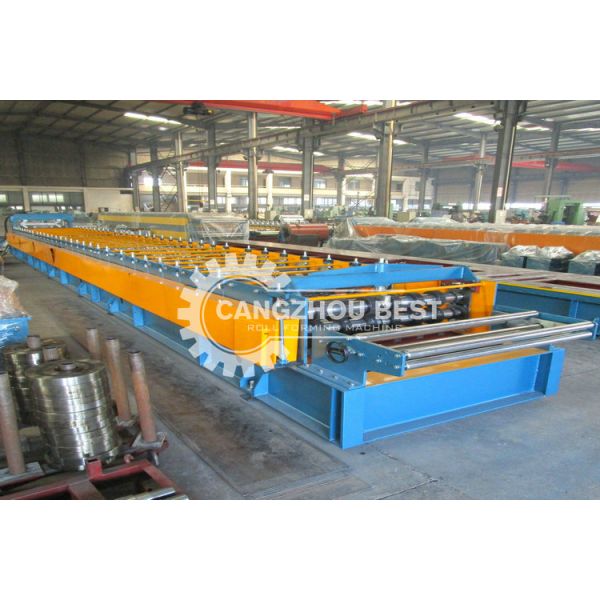

Automatic Industrial Steel Floor Deck Bending Machine with Hydraulic Cutter and Metal Roll Former Equipment
Working Flow
Decoiling---Sheet Guilding---Rollforming---Sheet Cutting---Finished Floor Deck Sheets on Tables
Technical Specifications
| No. | item | Parameters (all is up to our final design) | |
| 1 | Suitable raw material | Type | Galvanized & galvalume steel strip coil, GI, GL |
| Yield strength | 235MPa (or other high strength steel) | ||
| Thickness(mm) | 0.8-1.2 | ||
| width(mm) | According to final design | ||
| 2 | Uncoiler's capacity | 5 tons or 10 tons | |
| 3 | Roll Former Working speed(m/min) | About 6 meters/min | |
| 4 | Main motor power(KW) | 11kw x 2 | |
| 5 | Hydraulic power(KW) | 5.5kw | |
| 6 | Forming roller groups | Around 33 groups | |
| 7 | Raw material of corrugating roller | High quality No.45 steel coated with hard chrome | |
| 8 | Raw material of cutting blades | Cr12 mould steel with quenching treatment | |
| 9 | control system | Mitsubishi PLC & converter and touching screen | |
| 10 | Suitable industrial voltage | 220V/380V/415/440V | |
| 11 | Machine dimensions (L*W*H) | 16 x 1.6 x 1.6 meters | |
| 12 | Machine weight | About 16 tons | |
Product Parameters
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Machine components
| NO. | Item | Count |
| 1 | Uncoiler deck | 1 set |
| 2 | Forming machine | 1 set |
| 3 | Cutting device | 1 set |
| 4 | Hydraulic station | 1 set |
| 5 | PLC control cabinet | 1 set |
| 6 | Run out table | 1 set |
Our Advantages
1. Certificates: ISO 9001, CE, SONCAP
2. Full lifetime after services
3. High quality chromed plated No. 45 steel rollers; 82mm diameter
solid steel shaft. Lifetime>10years.
4. Automatic Mitsubishi PLC with touching screen to machine control
system.
5. One worker operation (minimum)
6. Heat treatment: Cutting blades. Quenching treatment: Cr12 mould
steel cutter
7. Product cut-to-length with small tolerance
8.Technician overseas installation and training service available



|
