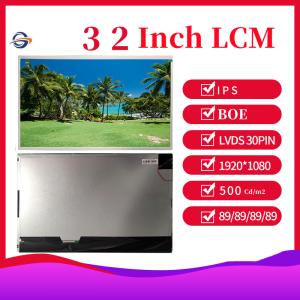

32'' Custom FHD TFT Display 1920x1080 TFT Color LCD Module LVDS Interface

1920x1080 32 '' custom FHD high Resolution LCD Module LVDS Interface

Product Description

Size		32inch
Panel type		a-Si TFT-LCD
View area		703.4×397.9 mm(H*V)
Dispaly area		698.4×392.85 mm(H*V)
Outline size		723.4×422.9mm
Dispaly mode		IPS,Normally black,Transmissive
Drive-screen Voltage		12V (Typ)
Resolution		1920*1080 , WXGA
Display ratio		16:9
Display brightness		500- 5000cd/m2
Constrast Ratio		2000:1
View angle		89/89/89/89
Display color		16.7M , 68% NTSC
Working freqyency		60Hz
Surface Treatment		Haze ,Hard coating(3H)
Light source type		WLED
Backlight lifetime		50000 hrs

Customize LCD Module

Our business scope covers LCD /LCM Module development, single-chipproduction and materials processing.

In a span of more than 10 years, we havedeveloped thousands of LCD and LCM products for Industrial,home applianceconsumer electronics, medicalequipment and other applications.

FPC design:

Customized Interface and Pins definition Customized FPC Shape and Material.

LCD Viewing Angle:

Full range of IPS LCD Options Super-Wide viewing angie Glare or Anti-qlare Polarizer O-film solution.

LCD Size:

4.3"-43”(Normal,ONCELL/TNSIPS) Brightness can be designed per customer's.

Backlight(BL) design:

Customized Outline Dimension BLFrame Material:Meta/Plastic/Metal&Plastic integrated Lifetime up to 50K hours High

brightness up to 1000cd/m2.

Customized CTP0.96-50inch:

Slide,roll,Single-touch,multi-touch,in-cell,on-cell,G+G,G+F.GGG Industry or automotive CTP solutions With OCA OCR optical

bonding.

Product Application

Our product have a wide range of industrial , instrument , medical , electronic equipment and other fields like below:

Why Choose US

We have grown organically to in excess of $79M revenue after 10 years of operation, by following a strict strategy outlined below.
We have substantial stock holding of every standard product in our portfolio, hence expect quick delivery for samples.
All products are designed and supported for long life cycle Industrial Projects. Technically we do not produce EOL products, instead we
maintain longevity offering backwards pin to pin, electrical and mechanically identical design iterations, in cases where IC's or
Mother Glass are obsoleted. You can expect 5-7 years longevity and then future iterations to extend this further.

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

FAQ

1. Where can I get the datasheet, initialization code and other technical files ?

Please contact with our sales directly or send me a email , we will
send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display ?

We can offer you the Resistive Touch Panel or Capacitive Touch
Panel if you need.Resistive touch panel - RTPs are the most common and lowest cost touch panel technology.
They are activated by contact from any
object, regardless of the material used. They are lower cost and
will operate in a wide range of temperatures and environmental
conditions.

Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or
tablets, and allow more light to pass
through, providing a brighter display. It is more expensive than
resistive touch panels and only recognizes a touch from skin or a
special pen.

3. Is there a possibility to make a more brighter display?

Yes, please share us more details about the project requirements,
and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?

Stock levels are based on item's sales history. We fill most small
quantity orders immediately. If an item goes out of stock after
you order it, we will contact you. If your order quantity exceeds
the list quantity in our store, please contact with our sales
for price, stock availability and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty

We understand you probably worry whether we still offer the display
after your long development time. DYMONA gives the promise to every
customer to every product we sell on this website. We promise the
long terms continuity supply and would never end supply.
Some controller IC may stop the production, we'll try our efforts
to find the completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC
as replacement. So you don't have to worry even your research time
is very long.

6. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides
all products are free of functional defects for a period of
one year from the date of shipment and all products are free of
visual defects and missing parts for a period of 30 days from the
date of shipment. If a product was damaged during shipping or the
order is incorrect, you must notify us within 7 days of receipt.

7. I am new for developing LCD modules.

Please don't worry about it. Our engineer will help you if you have
any problems when you try to power on the display. We will
send you the complete development documentation (datasheet, initial
code, schematic, CAD drawing etc) and help you easy to get
started.

Our business scope covers LCD /LCM Module development, single-chipproduction and materials processing.

In a span of more than 10 years, we havedeveloped thousands of LCD and LCM products for Industrial,home applianceconsumer electronics, medicalequipment and other applications.

Product Tags:


*From:	Your email address is incorrect!
*To:	SHENZHEN DYMONA Electronic Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	32 Inch LCD Screen
Brand Name:	DYMONA
Model Number:	M3206A64
Certification:	CE,SGS,ROHS,ISO9001
Place of Origin:	Guangdong,China
MOQ:	1pcs
Price:	Negotiable price
Payment Terms:	L/C, T/T,Payyal
Supply Ability:	1KK pcs
Delivery Time:	5-15 days
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supplier Type:	Factory
Pixel Pitch:	32.0 inch
Resolution:	1920*1080
Brightness:	500-5000 cd/m2
Interface Type:	LVDS interface
LCD Panel:	BOE
