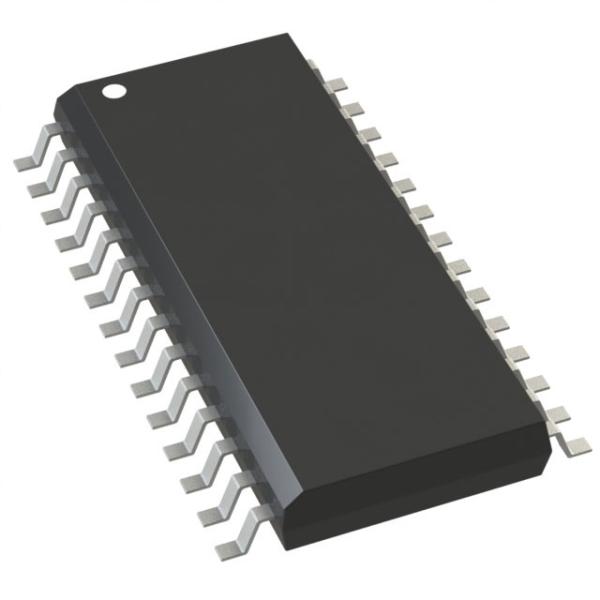

PIC16F883-I/SO 28/40/44-Pin , Enhanced Flash-Based 8-Bit CMOS Microcontrollers smd led circuit board

PIC16F883-I-SO 28/40/44-Pin, Enhanced Flash-Based 8-Bit CMOS Microcontrollers smd led circuit board

High-Performance RISC CPU:

• Only 35 instructions to learn:

- All single-cycle instructions except branches

• Operating speed:

- DC – 20 MHz oscillator/clock input

- DC – 200 ns instruction cycle

• Interrupt capability

• 8-level deep hardware stack

• Direct, Indirect and Relative Addressing modes

Special Microcontroller Features:

• Precision Internal Oscillator:

- Factory calibrated to ±1%

- Software selectable frequency range of 8 MHz to 31 kHz

- Software tunable

- Two-Speed Start-up mode

- Crystal fail detect for critical applications

- Clock mode switching during operation for power savings

DEVICE OVERVIEW

The PIC16F882/883/884/886/887 is covered by this data sheet. The PIC16F882/883/886 is available in 28- pin PDIP, SOIC, SSOP and QFN packages. The PIC16F884/887 is available in a 40-pin PDIP and 44- pin QFN and TQFP packages. Figure 1-1 shows the block diagram of PIC16F882/883/886 and Figure 1-2 shows a block diagram of the PIC16F884/887 device. Table 1-1 and Table 1-2 show the corresponding pinout descriptions.
