| Categories | ABS Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | VR Products |
| Certification: | ISO 9001:2015 |
| Place of Origin: | Vietnam |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 180 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 400 X 450 X 429 |
| IMM Tonnage: | 110T |
| Mold Weight: | 482kg |
| Gate: | Pin point gate |
| Tool life: | 500k shots |
| Features: | 2 slides and 18 lifters |
| Net weight: | 482kg |
| Injection type: | Cold runner |
| runner type: | Cold runner |
POA Transparent Rear Pad (1*1)
No.22729-B

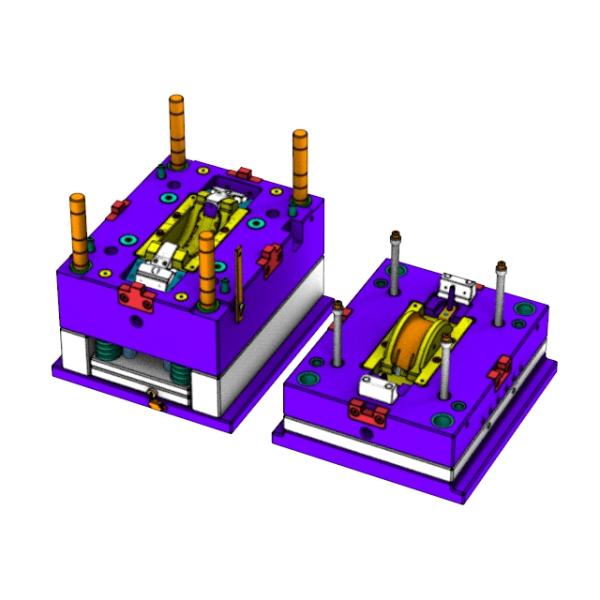

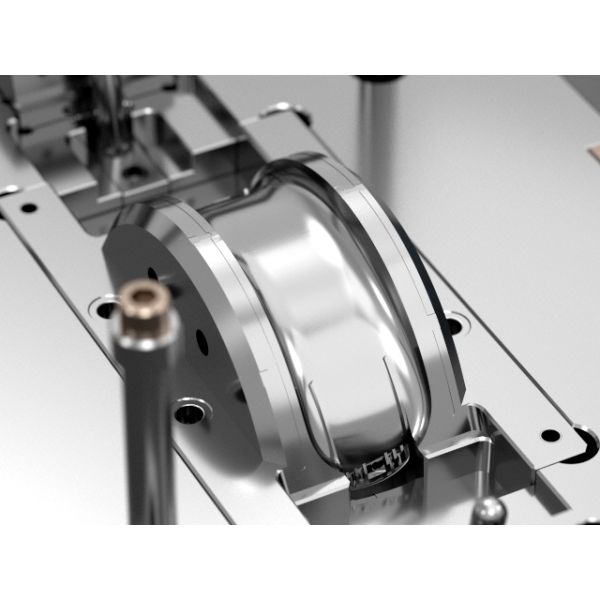

The mold part is made using an LKM mold base and is designed with a cold runner system. The surface of the mold has an etch of MT11010, and some areas are EDM (Electrical Discharge Machining) with VDI27# (Makino) and LKM standard. The mold has a size of 400mm in length, 450mm in width, and 429mm in height. It uses a pin point gate for the mold gate. |
The tool life of the mold is expected to be 500,000 shots. The mold has a three-plates structure with a hardened cavity and core made of S136 steel with a hardened surface, having a hardness greater than 600HV. It features 2 slides and 18 lifters. The net weight of the mold is 482kg, and it is suitable for an injection molding machine with a tonnage of 110T. |
| The injection molded parts are made from a PC+ABS material. The net weight of the injection part is 15g, and its size is 158.51mm in length, 47.92mm in width, and 70.83mm in height. |
Display diagram
|
