| Categories | Optical Power Meter |
|---|---|
| Brand Name: | YOUCii |
| Model Number: | U8728 |
| Place of Origin: | China |
| Certification: | CU,IOS |
| MOQ: | 1pcs |
| Price: | negotiate a price |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 20pcs+per month |
| Delivery Time: | 20 work days |
| Packaging Details: | Carton |
| Power Range: | +5 ~ -65dBm |
| Warranty: | 1 Year |
| Sampling period: | 100us (10KHz) |
| Communication Interface: | RS232, USB,Control by PC |
| Weight: | 3 Kg |
| Sensor Element: | InGaAs |
| Company Info. |
| Guangzhou UC Instruments., Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

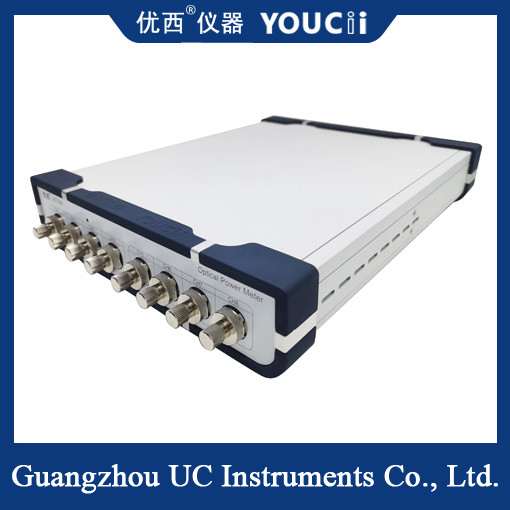

U8728 8 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
The Optical Power Meter is a reliable and accurate tool for measuring optical power and loss. It features CE/FCC/RoHS certification for trustworthiness and durability. The power range is -70~+10dBm with an accuracy of ±0.15dB. The data interface is USB/RS232 for data transfer and storage of up to 1000 data points. The display is a LCD for clear readouts, and the device also offers return loss and wavelength measurement.
| Model # | U8728A | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | ||
| Power Range | + 5 ~ -65dBm | ||
| Sampling period | 100us (10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | < 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | >40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ~ +40℃ | ||
| Storage Temperature | -30 ~ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
|   |
