| Sign In | Join Free | My futurenowinc.com |
 |
| Categories | Road Maintenance Machinery |
|---|---|
| Brand Name: | XCMG |
| Model Number: | XL2103 |
| Certification: | ISO CCC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD10000 per unit |
| Payment Terms: | LC, TT |
| Supply Ability: | 50units per month |
| Delivery Time: | 40 days after receive order |
| Packaging Details: | nude, by ro-ro ship |
| Max milling width: | 2100mm |
| Max milling depth: | 400mm |
| Bullet-head blade: | 168pcs |
| Rotor diameter: | 1280mm |
| Engine model: | WP12.400 |
| Engine power: | 294KW |
| Fuel tank: | 400L |
| Dimension: | 8740x2765x3450mm |

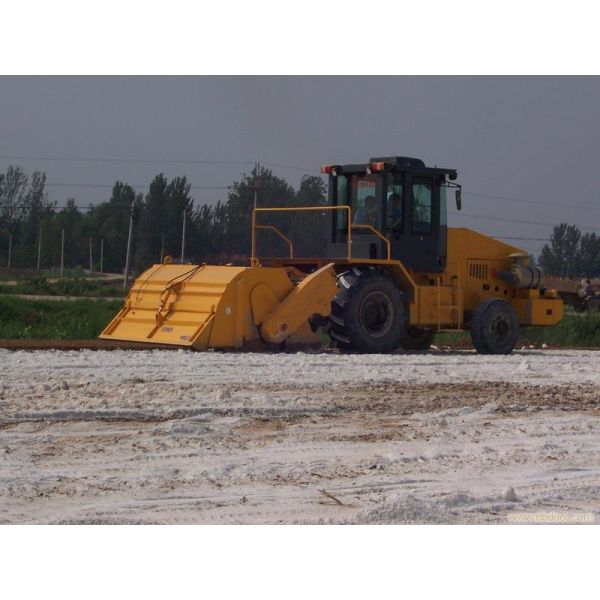

Stabilized Soil Mixing Machine
Product brief introduction
The XCMG XL series stabilized soil mixing machine is divided into two series: mid-mounted type and rear-mounted type, used for stabilized soil mixing operation in situ of road base course and the basal layer. The device has the characteristics of high efficiency, high reliability and easy operation, which can meet the construction requirements for a variety of complex working conditions. XCMG XL series stabilized soil mixing machine has been the domestic sales leader over the years, well received by users.
Main application
Stabilized soil mixing machine is suitable for the used for stabilized soil mixing operation in situ of road base course and the basal layer of the highways, urban roads, squares, docks, airports, car parks and other projects. It can mix the soil and stabilized material of grade I, II, allowing to mix the material with stones particle size of less than 40mm, also soil or stabilized soil material grade III and IV.
| Item | Specification |
| Model | XL2103 |
| Max.Milling width | 2100mm |
| Max.Milling depth | 400mm |
| Milling motor | |
| Numbers of tools Bullet-head blade | 168pcs |
| Rotor diameter | 1280mm |
| Engine | |
| Model | WP12.400 |
| Rated power | 294KW |
| Rated speed | 1900rpm |
| Performance | |
| Working speed | 0-3km/h |
| Travelling speed | 0-23km/h |
| Grade ability | ≧20% |
| Ground clearance | 450mm |
| Operating weight | 15600kg |
| Tank capacity | |
| Fuel tank | 450L |
| Hydraulic oil tank | 450L |
| Working device type | postposition |
| Travelling mode | tyre |
| Dimension | 8740x2765x3450mm |
