Integrated Silicone Rubber Keyboard With Backlight 2 External Mouse Keys

Categories Silicone Industrial Keyboard
Brand Name: IKB-MKB
Model Number: K-TEK-M270-FN-MS-BL+TP65+2KEY
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin: Shenzhen, China
MOQ: 1pc
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Packaging Details: Each keyboard to one box, several boxes to one carton.
application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
connection: PS2, USB available
material: rubber
key: 87 keys + 2 mouse buttons
G.W.: 1.20KGs
Operating temperature: -20℃ to +60℃
Name: silicone keyboard with touchpad
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

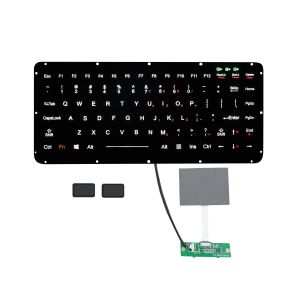

Integrated Silicone Rubber Keyboard With Backlight 2 External Mouse Keys

Integrated Silicone Rubber Keyboard With Backlight 2 External Mouse Keys


DESCRIPTION: 87 keys IP65 dynamic sealed & ruggedized silicone rubber special professional keyboard with rugged touchpad module and 2 external mouse keys integrated, ideal for notebooks, rugged laptops/PC and UAV drone etc. applications. 12 function keys on top line for easy operation, using reinforced special membrane switch key technology with key stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, accurate and fast input, there will be no key value missing, no stuck key, no repeated key value output during the keyboard operation, The keyboard built-in ultra-thin metal frame and ultra-thin metal reinforcement bottom plate combine the keyboard seal reinforcement into a professional whole, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable industrial white backlight included. FN + End button to control keyboard backlight and FN + ↑ or ↓ button to adjust backlight brightness. Embedded installation mode. Built to meet critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, as well as MIL-STD-810F with high and low temperature, wet and hot, vibration, mildew Level 2, salt spray, direct rain, direct sun, dust etc. MIL-STD-461G-EMC-EMI-EMS optional.


Dimension: Keyboard: 270.0mm x 113.0mm(L x W) Touchpad: 65.0mm x 49.0mm (L x W )

MECHANICAL DATA
Keys87 keys + 2 mouse buttons
Key top styleProtuberant rectangular keys with tactile feeling
Key Size12.0mm X 13.0mm for normal keys
Key travel1.20mm±0.1mm
Actuation Force1.2N±0.2N (pressure point )
Switch lifemore than 5 million of operations
Touch padsealed and ruggedized tough touchpad
Touchpad coverComposite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution40 Counts /mm
X/Y position reportrelative
Output (self-detectable depending on cable)PS2 or USB
Tracking speedMaximum 1,016 m/sec
Power supply voltage5VDC ± 0.25V
Current rating (active mode)< 10 mA
G.W.1.20KGs
ELECTRICAL DATA
Supply VoltageDC +5V±5%
Current Rating50mA when backlight is off, 300mA with backlight on
EMC StandardEN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Materialindustrial PCB with membrane key switch technology
InterfacePS2, USB available
Cable lenghStandard 0.8m, other customized length available
OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature-20℃ to +60℃
Storage temperature-30℃ to +65℃
Operating RH100%
Atmospheric pressure60-106Kpa
Saline mist96 hours, IEC 60512-6
Damp heat test at +40℃21 days, IEC 60512-6
Dry heat test at +85℃10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)
Protection LevelIP65 dynamic (front panel)
Key Lifespan>5 million actuations
MTBF>20000H
MTTR<30min
APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
