| Categories | LED Flood Light |
|---|---|
| Brand Name: | MF |
| Model Number: | MF-TGD-CXXXW |
| Certification: | CE,RoHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Ex-work/FOB price |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000pcs/Month |
| Delivery Time: | 2 weeks |
| Packaging Details: | Depends on each model |
| Input Voltage: | 90-305V~50/60Hz |
| Power: | 10W 20W 30W 50W 100W 200W |
| Luminous Efficiency: | 150lm/W±5% |
| IP Rating: | IP66 |
| CCT: | 3000K-4000K-5700K |
| Beam Angel: | 120° |
| Driver: | International driver brand |
| Body Color: | Black/Silver |
| Housing: | Powder coated Aluminium Alloy |
| Chips: | Lumileds |
| Dimming: | 1-10V, Dali2.0 |
| Precision Aiming Device: | MF |
| IK Rating: | IK 08 |
| Company Info. |
| Ming Feng Lighting Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
240W 300W Power Dimmable Floodlamp Floodlighting LED Flood Light for Sport Court IP66 Waterproof CCT Adjustable Selectab

![]()
Die-casting technology by ADC12, excellent thermal management,
reduce the temperature difference and ensure the lumen
depreciation.
4mm tempered glass, Integrated Breather Valve: Balances The
Internal & External Temperature and Humidity
Offset bracket design, Racked Angle ±120 ° adjustable, Allows For
Precise Installation
Top brand LED chip and driver, ensure the product quality and
lifetime
Ingress Protection Rating: IP66
Operation Temperature: -25ºC-+50ºC
3000K,4000K,5700K Adjustable
CRI >70,80
5 years Warranty
| Model | MF-TGD-CA100W | MF-TGD-CA150W | MF-TGD-CA200W | MF-TGD-CA240W | MF-TGD-CA300W | |||
| Rated Power | 120W-100W-80W Dim | 150W-120W-100W Dim | 200W-150W-100W Dim | 240W-200W-150W Dim | 300W-240W-200W Dim | |||
| LED Chips | Lumi-leds-480PCS | Lumi-leds-720PCS | Lumi-leds-960PCS | Lumi-leds-1200PCS | Lumi-leds-1440PCS | |||
| Input Voltage | AC100 -277V | |||||||
| Driver | ZH / Sosen / Meanwell | |||||||
| CRI | 70+/80+ | |||||||
| CCT | 3000K-4000K-5700K | |||||||
| Power Factor | >0.95 | |||||||
| Driver Efficiency | 92% | |||||||
| Luminous Efficacy | 120-130lm/W | |||||||
| IP Rating | IP66 | |||||||
| IK Rating | IK08 | |||||||
| Housing | Die-Cast Aluminum | |||||||
| Cover Material | Tempered glass | |||||||
| operation Temperature | -25°C- +50°C | |||||||
| Beam Angle | 120° | |||||||
| Warranty | 3 / 5 years | |||||||

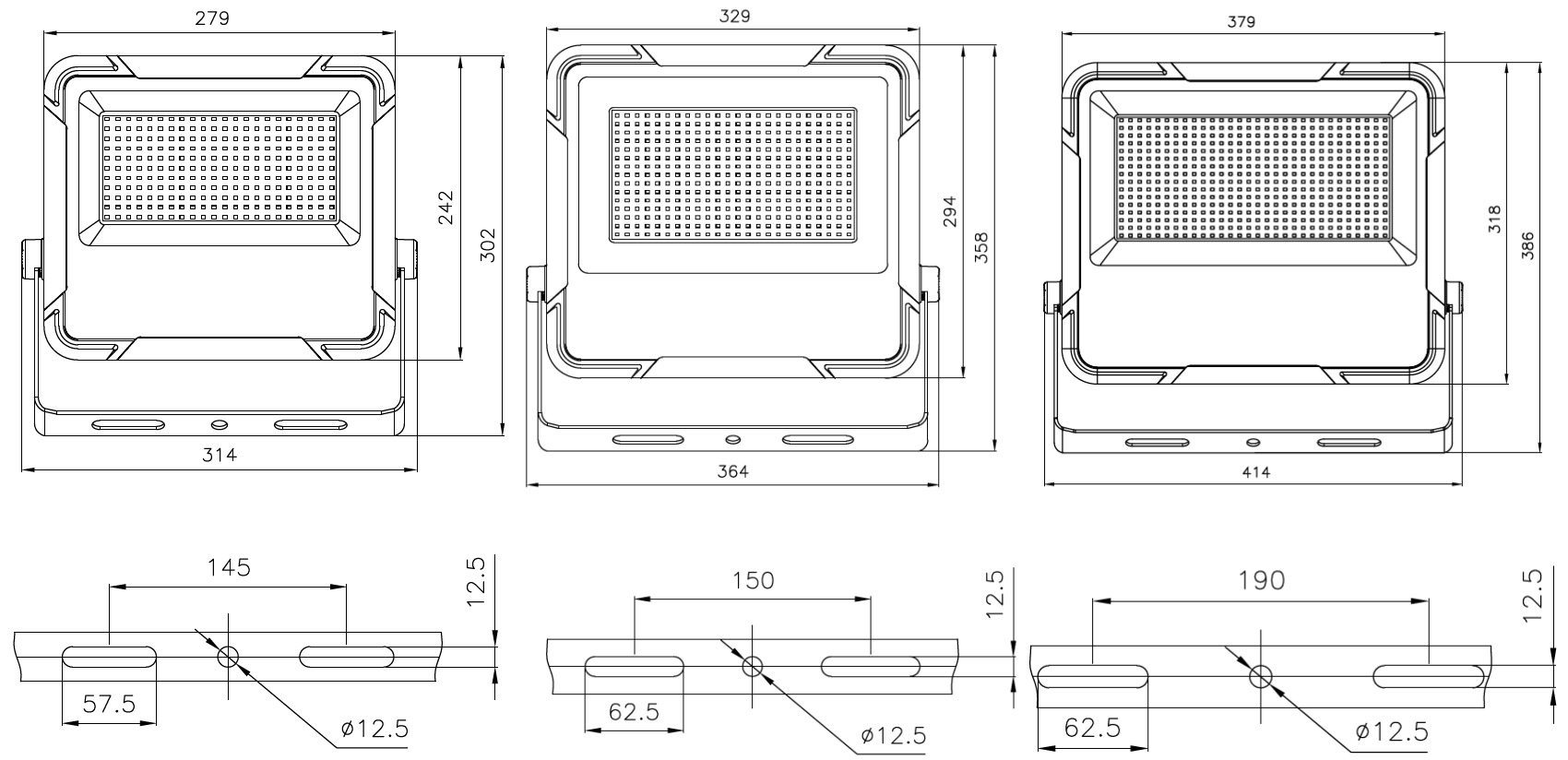

| Dimension | 302*314*49mm | 358*364*49mm | 386*414*51mm | 460*480*54mm | 460*480*54mm | |||
| Carton Size | 395*330*400mm, 5PCS/CTN | 400*395*495mm, 5PCS/CTN | 415*330*555mm, 4PCS/CTN | 460*275*630mm, 3PCS/CTN | 460*275*630mm, 3PCS/CTN | |||
| Net Weight | 2.80KG | 4.50KG | 5.8KG | 7.85KG | 8.0KG | |||
| Gross Weight | 3.35KG | 5.05KG | 6.35KG | 8.75KG | 9.0KG | |||

![]()



Die-casting technology by ADC12
ACD12 Frame, Concise appearance, No Screws design
Racked Angle,10° steps, allows for 270°installation adjustment./4mm
Tempered Glass
Hem corner, strengthen stability/Offset bracket and Galvanized
treatment,corrosion resistant
1. High performance and reputable brand LED chips and driver
2. Clear tempered glass decrease risk of lamp breaking for strong
industrial applications
3. Optimized aluminum alloy housing design for superior thermal
management
4. Instant light up with no warm up time
5. No cool down needed before restart
6. High mechanical impact resistance and ingress protection rating
7. Compact in size and easy for transportation
![]()


![]()
100W / 150W / 200W

240W/300W

Installation

![]()
Roads and highways / Parking lots / Sports stadiums / Railroad
yards / Shipyards / Warehouses / Truck stops and rest areas /
Outdoor parks and recreation areas / Playgrounds / Storage
facilities
Any Outdoor place,Etc

|
