| Categories | Portable EV Charger |
|---|---|
| Brand Name: | HEIU |
| Model Number: | T1-CEE-32A |
| Certification: | TUV,CE,RoHS |
| Place of Origin: | China |
| MOQ: | sample accepted |
| Price: | negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000pcs/Day |
| Delivery Time: | 10-15 days |
| Packaging Details: | Carton Box, Pallet |
| Current: | 10-16-20-24-32A |
| Charging Cable Length: | 6m as standard (Customized length available) |
| Function: | current switch, Large touch screen,screen display, Voltage Monitoring |
| Type: | portable ev charger |
| Application: | electric vehicle charging |
| Wall Side Plug Available: | Red CEE plug, Blue CEE plug |
| Company Info. |
| Chengdu Heiu Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

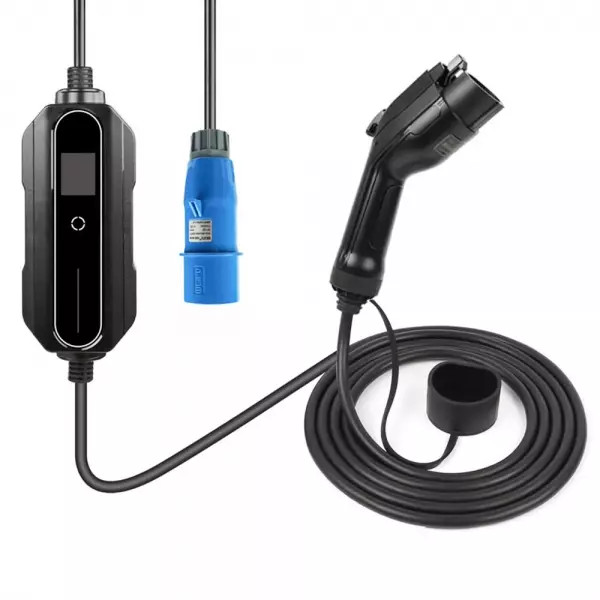

32A 7.4KW Type 1 Mode 2 Portable EV Charger Electric Car Portable Charger With LCD Screen 5m Cable - US
Compact Car Charger
The charge cable measures 5m from plug to plug. It is a compact
portable EV charging station that is an ideal solution for low-cost
charging in your garage or to keep in the trunk of your EV for
charging at work or on trips.
Over Temperature Protection
When the internal temperature of the control box exceeds 85°C,
enter over-temperature protection, and stop charging. It will
recover charging after the temperature drops to 65°C.
Detailed LED Display
Easily read the charging temperature, current, time and power
status in kWh on the convenient screen.
High Security
Our EV charger adopts High Strength ABS material, which has better
quality and high durability. Our chargers have over-current
protection, over-voltage protection, under-voltage protection,
leakage protection, and overheating protection.
Applicable Vehicles
There are two different charging standards for EVs, Type 1 for US
and Type 2 for EU. Please make sure you are choosing the correct
charging plug for your EV.
Product Specification:
| General | Brand: HEIU Type: Electric Car Charger Color: Black |
| Specification | Service life: >10000 times Insulation resistance: > 1000M ohm Terminal temperature rise: <50K Withstand voltage: 2000V Contact impedance: 0.5mohm Max Vibration resistance: Meet JDQ 53.3 requirements Working temperature: -30°C ~ 50°C Shell Material: Thermo Plastic (Insulator inflammability UL94 V0) Contact Pin: Copper alloy, silver Sealing gasket: Rubber Inlet cable spec: 3*2.5mm2 Outlet cable spec: 3*2.5mm2 2*0.5mm2 Cable diameter: 12(mm) / 0.47(in) Certificate: TUV/ RoHs Power plug: CEE 3Pins EV charging plug: Type 2 or type 1 Current: 10A 16A 20A 24A 32A adjustable Voltage: AC 110V-250V Power: max 7.4 kw Length: 5m (16.4ft) Cable: Black straight cable Controller type: LCD screen Protection level: IP66 |
| Size | Product Size(L): 5m Package Size(L x W x H): 34 x 35 x 12 cm |
