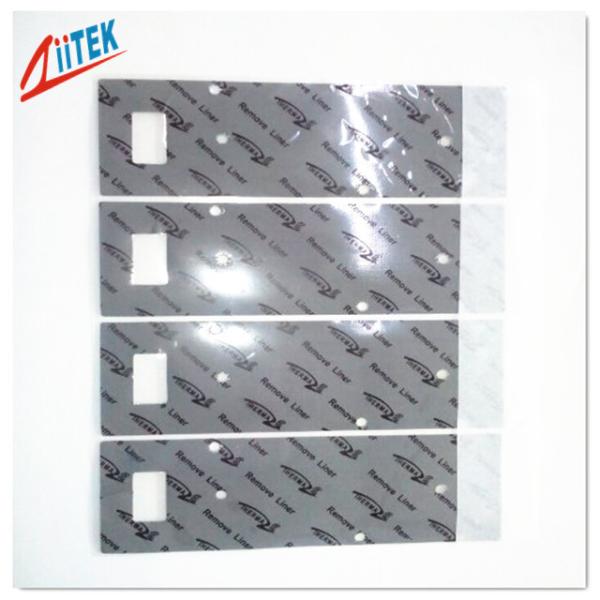

20shore00 4W Ceramic Filled Silicone Thermal Conductive Pad 3.1 G/Cc For Notebook

Keeping economy high efficiency soft 20shore00 4W Ceramic filled silicone thermal conductive pad 3.1 g/cc for notebook


The TIF520-40-11US Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics.The TIF520-40-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

TIF500-40-11US Datasheet-REV02.pdf

Features:
> Good thermal conductive: 4.0 W/mK

>Thickness:0.5mmT

>hardnesses :20 (Shore 00)

>Moldability for complex parts

>Outstanding thermal performance

Applications:

>notebook

>power supply

>Heat pipe thermal solutions

>LED Power Supply

>LED Controller

>LED Ceilinglamp

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
