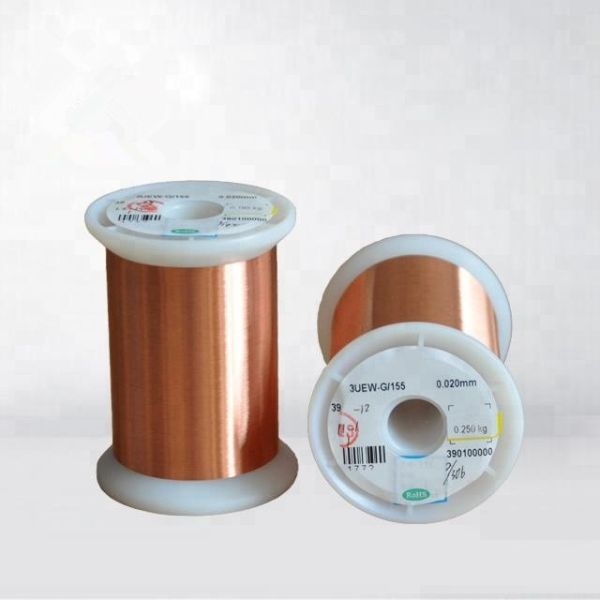

Polyurethane Enameled Self Bonding Wire 1UEW Magnet Wire With High Electrical Conductivity

POLYURETHANE ENAMELED SELF BONDING WIRE 1UEW MAGNET WIRE WITH HIGH ELECTRICAL CONDUCTIVEITY

Copper has high electrical conductivity when compared to gold (or aluminum). As a result better heat dissipation and increased power ratings are attainable with thinner wire diameters. Copper possesses higher mechanical properties compared to gold, enabling excellent ball neck strength and high loop stability. They are strong, with high tensile strength. Copper wires are used for both ball and wedge bonding when using a protective forming gas. Copper has good intermetallic stability which contributes, over time, to the bond reliability.

Alongside the many benefits of copper wires, the inherent characteristics of the material also create many challenges semiconductor manufacturers struggle with when handling copper micro wires.

FEATURES AND BENEFITS

Good performace at softening breakdown
Suitable for high-speed automated routing
Able to be direct weld, with no pinhole
Resistive to high frequency, wearing, refrigerants and electronics corona
High breakdown voltage, small dielectric loss angle

APPLICATION

Small type motor ( Electric household appliance, Toys & etc. )
Transformer for measuring instrument
For communication : High frequency coil for transformer, Coil for power source transformer
Coil-suitable for electric, component coil with medium, high voltage & etc.

SPECIFICATION

Dimensions				Minimum	Failing load in resistance-to-			Maximun	Minimum
				dielectric	abrasion test N (gf)			conductor	elongation
Conductor		Minimum	Maximum	breakdown				resistance per	%
		film	overall	voltage				unit length
		thickness	thickness	V.	Average value		Lowest value	W / km (20^oC)
Diameter	Tolerance	mm.	mm.		(min.)		(min.)
mm.	mm.
0.02	+ 0.002	0.002	0.028	40	1.6 {163}-		1.3 {133}	69850	3
0.025			0.034	60				42780
									5
0.03			0.04	70				28870
0.04			0.052	100				15670
									7
0.05	+ 0.003	0.003	0.064	700				10240	10
0.06			0.075					6966
0.07			0.085					4990
0.08			0.097					3778
0.09			0.107					2959
0.1			0.118					2381
									15
0.11			0.128					1957
0.12			0.139					1636
		0.004		850
0.13			0.149					1389
0.14			0.159					1193
0.15			0.169					1037
0.16			0.181					908.8
		0.005
0.17			0.191					803.2
0.18			0.202					715
				1000
0.19			0.212					640.6
0.2			0.222					577.2
0.21			0.232					522.8

0.22	+ 0.004		0.243					480.1
0.23			0.255					438.6
		0.006
0.24			0.265					402.2
0.25			0.275					370.2
0.26			0.285					341.8
0.27			0.295					316.6
0.28			0.305					294.1
0.29			0.315					273.9
									20
0.3	+ 0.005	0.007	0.327	1400	1.9 {194}		1.6 {163}	254
0.32			0.347					222.8
0.35			0.377					185.7
0.37			0.397					165.9
0.4			0.429					141.7
					2.0 {204}
0.45	+ 0.006		0.479				1.7 {173}	112.1
0.5		0.008	0.531					89.95
				1450	2.3	{235}	2.0 {204}
0.55			0.581		2.4 (245}			74.18
0.6	+ 0.008		0.632					62.6

Product Tags:


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Self Bonding Wire
Brand Name:	Rvyuan
Model Number:	UEW
Certification:	IEC/NEMA/JIS/RoHS/ISO
Place of Origin:	China
MOQ:	Different types with differet MOQ
Price:	Negotiation
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand
Delivery Time:	2-15 workding days
Packaging Details:	Spool with carton
Insulation Material:	enameled
Size Range:	0.012-0.8mm
Thermal Class:	155/180
AWG:	20-56
Shape:	Round
