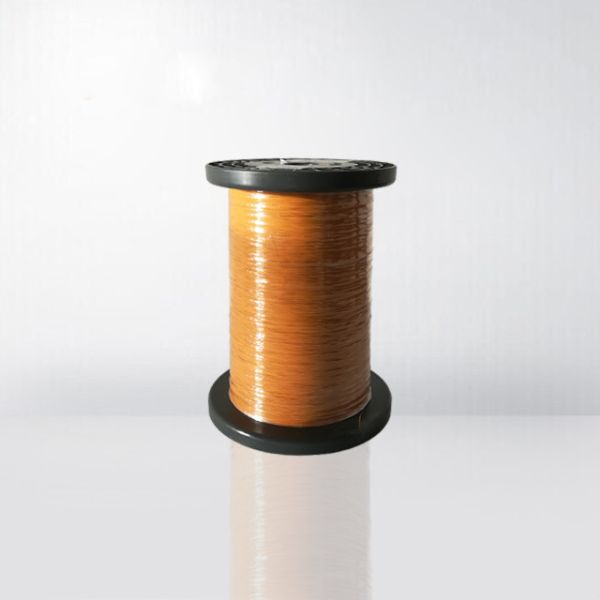

1000 Vrms Rated Copper Enameled Wire Voltage Triple Insulated Wire For High Frequency Transformer

Categories	Triple Insulated Wire
Brand Name:	Rvyuan
Model Number:	TIW-B
Certification:	UL/ROHS/ICE/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA
Place of Origin:	China
MOQ:	Different types with differet MOQ
Price:	Negotiation
Supply Ability:	Satisfy your demand
Packaging Details:	Spool with carton
Payment Terms:	T/T, L/C,Negotiation
Delivery Time:	2-15 days
Color:	Red/Pink/Blue/Yellow
Size:	0.10-1.00mm
Packing:	plastic roll in carton
Rated Temperature:	130
Rated Voltage:	1000 Vrms
Solderability:	Directly
Insulation:	PVC Insulation Control Cable
Material:	Copper

Contact Now

Add to Cart

Company Info.

Tianjin Ruiyuan Electric Material Co,.Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1000VRMS RATED COPPER ENAMELED WIRE VOLTAGE TRIPLE INSULATED WIRE FOR HIGH FREQUENCY TRANSFORMER

EXCELLENT INSULATION QUALITY

Supreme UL grade of insulation:Reinforced Insulation

The most advanced insulation type: Triple extrusion

Electric Strength Test:1.Straight Test:AC 3,000V/1 min above

2.Twisted Teat:AC 6,000V/1 min above

SUITABILITY FOR HIGH FREQUENCY

Suitable for 30kHz above high frequency purpose

Equalized electric quality with extrusion type

Low dielectric constant

Handing/Storage convenience-Superior physical strength and durability for abrasion

IMPROVED PRODUCTIVITY

Simple production processes: No barrier tape and interleaved insulation tape are required

Solderability: Soldering can be conducted without removal of insulation layer

Conductor m/m		End product m/m		Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m	Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
0.10	±0.008	0.30	±0.02	2264.7	15
0.12	±0.008	0.32	±0.02	1786.0	15
0.14	±0.008	0.34	±0.02	1286.0	15
0.15	±0.008	0.35	±0.02	1111.0	15
0.16	±0.008	0.36	±0.02	908.8	15
0.17	±0.008	0.37	±0.02	853.5	15
0.18	±0.008	0.38	±0.02	757.0	15
0.19	±0.008	0.39	±0.02	676.2	15
0.20	±0.008	0.40	±0.02	607.6	15
0.21	±0.008	0.41	±0.02	549.0	15
0.22	±0.008	0.42	±0.02	498.4	15
0.23	±0.008	0.43	±0.02	454.5	15
0.24	±0.008	0.44	±0.02	416.2	15
0.25	±0.008	0.45	±0.02	382.5	15
0.26	±0.010	0.46	±0.02	358.4	15
0.27	±0.010	0.47	±0.02	331.4	15
0.28	±0.010	0.48	±0.02	307.3	15
0.29	±0.010	0.49	±0.02	285.7	20
0.30	±0.010	0.50	±0.02	262.9	20
0.32	±0.010	0.52	±0.02	230.0	20
0.35	±0.010	0.55	±0.02	191.2	20
0.37	±0.010	0.57	±0.02	170.6	20
0.40	±0.010	0.60	±0.02	145.3	20
0.45	±0.010	0.65	±0.02	114.2	20
0.50	±0.010	0.70	±0.02	91.4	20
0.55	±0.020	0.75	±0.02	78.2	20
0.60	±0.020	0.80	±0.02	65.3	20
0.65	±0.020	0.85	±0.02	88.3	20
0.70	±0.020	0.90	±0.02	47.2	20
0.75	±0.020	0.95	±0.02	41.2	20
0.80	±0.020	1.00	±0.02	36.1	25
0.85	±0.020	1.05	±0.02	31.9	25
0.90	±0.020	1.10	±0.02	28.4	25
0.95	±0.020	1.15	±0.02	25.4	25
1.00	±0.030	1.20	±0.02	23.3	25
