| Brand Name: | ZL |
| Model Number: | ZL-9027 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 set per month |
| Delivery Time: | 3-5 days |
| Packaging Details: | Multi - Function Electronic Bottle Cap Torque Tester With Built In Printer is Packaged within wooden case |
| Product name: | Multi - Function Electronic Bottle Cap Torque Tester With Built In Printer |
| Power: | 220v 50hz |
| Measuring range: | to 20NM |
| Precision: | ±0.5% |
| Charging Time: | 4~6 Hours |
| Battery life: | ≥300 times |
| Warranty: | 12 month |
| Key words: | Bottle Cap Torque |
| Company Info. |
| Dongguan Zhongli Instrument Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

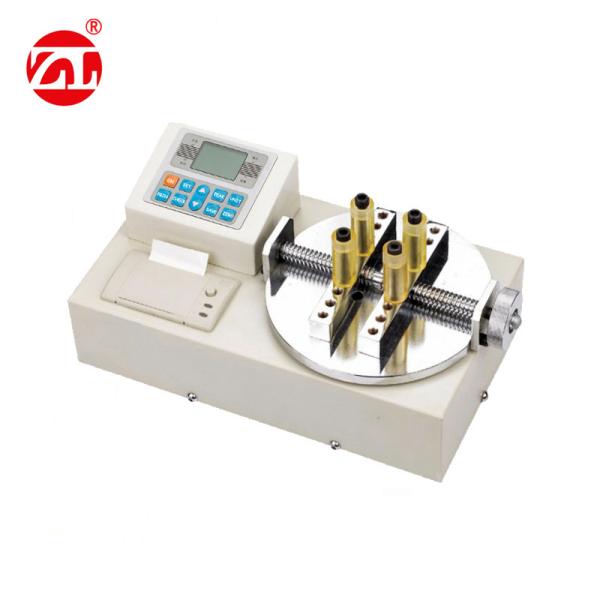

Multi - Function Electronic Bottle Cap Torque Tester With Built In Printer
Instrument Summary:
Electronic Bottle Cap Torque Tester With Built In Printer is one of intelligent multi-function instruction
equipment for testing or inspecting many kinds of caps with torque. It specially is used on testing the torque of cap or lamb cap. It is widely used on product control system, with the function of easy to operate, high accuracy and economy.
Technologic Specification:
| Type | With printer | 2202-20 | |||||
| Index | No printer | 2202-N1 | 2202-N2 | 2202-N3 | 2202-N5 | 2202-N10 | 2202-N20 |
| Measuring range / Division value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/0.0001 | 5.0000/ 0.0001 | 10.000/0.001 | 20.000/0.001 |
| Kg·cm | 10.200/0.001 | 20.400/0.001 | 30.600/0.001 | 51.000/ 0.001 | 102.00/0.01 | 204.00/0.01 | |
| Ib·in | 8.850/ | 17.700/0.001 | 26.550/0.001 | 44.250/ 0.001 | 88.50/0.01 | 177.00/0.01 | |
| Precision | ±0.5% | ||||||
| Peak Value Sampling Frequency | 2000 HZ | ||||||
| Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||||
| Charging Time | 4~6 Hours | ||||||
| Continuous using time of battery | About 10 Hours | ||||||
| Battery life | ≥300 times | ||||||
| Size | 400mm×200mm×200mm | ||||||
| Net Weight | 12KG | ||||||
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA | ||||||

|   |
