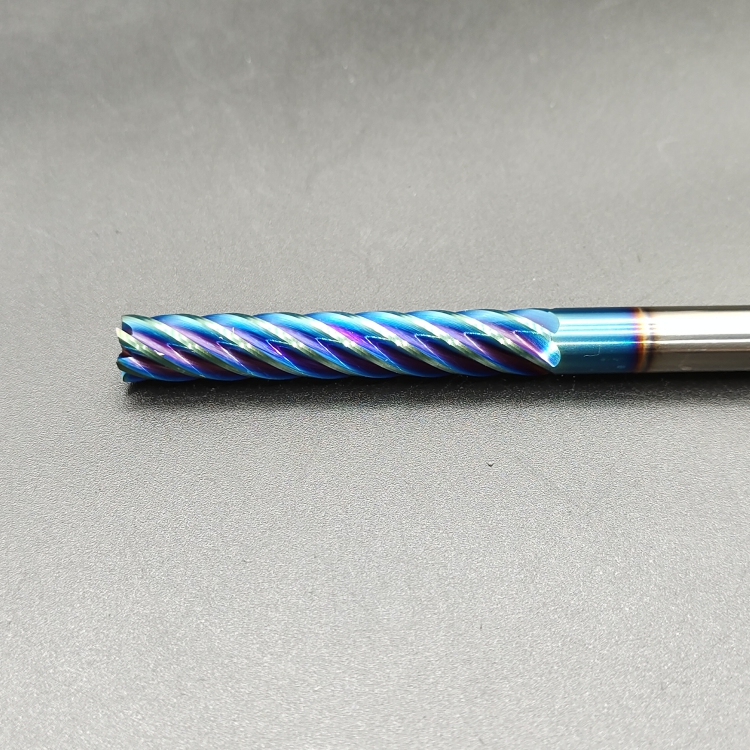

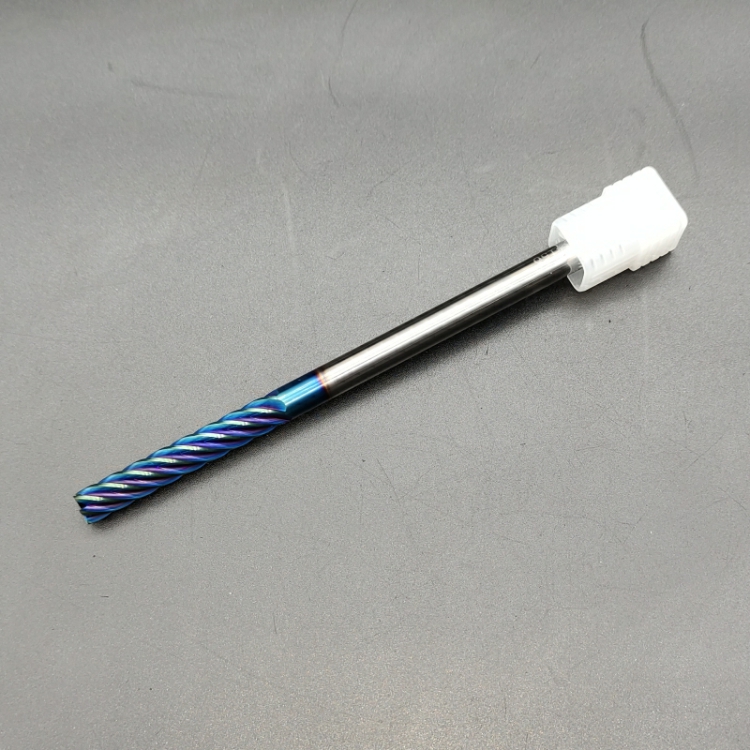

HRC65 Cemented Carbide 6Flutes End Mill Milling Cutters With Blue-Nano caoting

Categories	Carbide Square End Mill
Brand Name:	GW Or OEM
Model Number:	HRC 45, 50, 60, 65
Certification:	ISO900-2008, SGS
Place of Origin:	ZhuZhou,China
MOQ:	10 pcs
Price:	USD 0.8~20/PCS
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs/month
Delivery Time:	7~15days
Packaging Details:	Standard Export Carton
Cutting Form:	Flat, Ball Nose, Corner Radius, Roughing
Coating Types:	Tisin, Tialn, Altin, Ticn, Blue Nano
Flutes Number:	2, 3, 4, 5, 6
End Mill Flute Diameter:	D0.5mm-D25mm, Customized
Length:	50mm-150mm, Customized
Flexural Strength:	2500-4000n/mm2
Package:	1 PCS in a Plastic Tube, 10 PCS Per Group
Shipment:	FedEx, DHL, TNT, UPS, EMS, etc.

Contact Now

Add to Cart

Company Info.

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

HRC65 Cemented Carbide 6Flutes End Mill Milling Cutters With Blue-Nano caoting

Product Overview

HRC65 Tungsten Carbide Ball Nose Milling End Mill with Nano Coating

Application:suitable for processing stainless steel, cast iron, copper,carbon steel etc.
 Best material: we use the import material, AF,SANDVIK,KENNA,CB,etc.
 Quality:all our manufactured parts are inspected by advanced zoller mearsurement.
 Facility:we have the world lastest 5-axis tools grinding machines.
 Flexbility:non-standard sizes are accepted.

PRODUCT SPECIFICATIONS

FEATURES AT A GLANCE

1. Products Description
 Micro grain raw material
 Grain size: 0.4-0.6μm
 Co 10%, 12%
 TRS >3600 N/mm2
 Hardness HRA 91.8-92.5
 Work piece HRC45-50 HRC55-60 HRC65 HRC68
 Helix angle 30°-45 °
 Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
 Diameter of rods 4-20 mm
 Length 50-100 mm
 Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
 Flutes No. 1-7

HRC45	HRC55	HRC60	HRC65
Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2	Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2	Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2	Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2

Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
2GW1-01002050	1	3	50	4
2GW1-01504050	1.5	4	50	4
2GW1-02050500	2	5	50	4
2GW1-02507050	2.5	7	50	4
2GW1-03008050	3	8	50	4
2GW1-04010050	4	10	50	4
2GW1-04015075	4	15	75	4
2GW1-04020100	4	20	100	4
2GW1-05012050	5	13	50	6
2GW1-06015050	6	15	50	6
2GW1-06020075	6	20	75	6
2GW1-06020100	6	30	100	6
2GW1-06020060	8	20	60	8
2GW1-08025075	8	25	75	8
2GW1-08025100	8	35	100	8
2GW1-010025075	10	25	75	10
2GW1-010040100	10	40	100	10
2GW1-012020075	12	30	75	12
2GW1-012040100	12	40	100	12
2GW1-014020080	14	30	80	14
2GW1-014100100	14	40	100	14
2GW1-016040100	16	40	100	16
2GW1-018040100	18	40	100	18
2GW1-020040100	20	40	100	20
2GW1-06040150	6	40	150	6
2GW1-08050150	8	50	150	8
2GW1-010050150	10	50	150	10
2GW1-012050150	12	50	150	12
2GW1-014060150	14	60	150	14
2GW1-016060150	16	60	150	16
2GW1-018060150	18	60	150	18
2GW1-020060150	20	60	150	20
