| Categories | Corrugated Cardboard Machines |
|---|---|
| Brand Name: | Dpack |
| Model Number: | WJ150-1800 |
| Certification: | IOS9001 |
| Place of Origin: | China Hebei Dongguang |
| MOQ: | 1 Line |
| Price: | Negotiate |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 Line/130 Days |
| Delivery Time: | According to product |
| Packaging Details: | Wooden case or wrapping film |
| Design speed: | 150m/min |
| Working speed: | 120-130m/min |
| Delivery time: | 120 days after deposit |
| Standard installation Time: | 40 days |

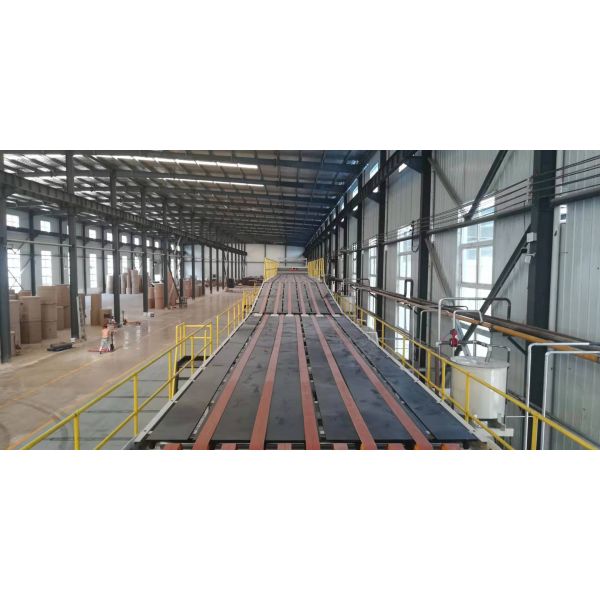

WJ150-1800 Steam heat 5 ply corrugated cardboard production line configuration lists
| Design speed:150m/min | Working speed :120-130m/min | ||
| No | Name | Qty | Remark |
| 1 | Hydraulic stand | 5 | RS-1500-1800 type, Base paper lifting, clamping loosening, left shift, right shift are hydraulic control, two brakes, expand chuck. The maximum paper width is 1850mm, the maximum paper diameter 1500mm Hydraulic valve made in Tianyuan . |
| 2 | Railing and pulley | 10 | 8m railing with pulley 16# channel steel |
| 3 | Single facer | 2 | SF-320S-1800mm. Adsorption,￠320mm Corrugated Rolls 48CrMo alloy steel Origin : Wuxi Applicator glue roller,doctor glue roller Origin:Jiangsu Haili Digital show glue quantity.glue part can remove Electric adjusts glue area. Gimbal drive Bearings:(mainly)NSK Japan; Delta frequency changer B,C flute |
| 4 | Duplex Bridge | 1 | BS-T-1800mm Adsorption, frequency leading paper Double suction |
| 5 | Pre-heater | 2 | MH-900T-1800mm Dia900mm, electric adjust wrapping angle Wall Thickness 18 |
| 6 | Pre-conditioner | 2 | MH-900T-1800mm Dia900mm, electric adjust wrapping angle Wall Thickness 18 |
| 7 | Triplex pre-heater | 1 | MH-900T-1800mm Dia900mm, electric adjust wrapping angle Wall Thickness 18 |
| 8 | Glue machine | 1 | GA-318D-1800mm. Glue roll￠318mm Origin:Jiangsu Haili Dividing glue roller diameter:160mm Origin:Jiangsu Haili Frequency control glue and figure show PLC control Main bearing adopt NSK |
| 9 | Double facer | 1 | DF-745-1800mm. Auto correct,casting plate Hot plates600mm×16pcs ,Touch plate 12 blocks |
| 10 | NC slitter | 1 | Change order 5-8second,zero press line |
| 11 | NC cutter | 1 | Cutting blade dia 188mm, Blade adopt Taiwan Cutting precision :±1mm |
| 12 | Auto stacker | 1 | Stacking length:3500mm Stacking height:250mm |
| 13 | Main drive | 1 | DF-745-1800mm Diameter 745mm Rubber roller Independent reducer box, gimbal driving. |
| 14 | Pneumatic system | 1 | GF-T Pneumatic System. Include0.9m3storge tank1. Pump and pipeline provided by customer |
| 15 | Electric system | 1 | EF-T Electric control system Electrical adopt ABB,Schneider brand including wires from switch board to main motor. |
| 16 | Steam system | 1 | SP-S Steam system Shanghai drain water valve ,main wires by buyer |
| 17 | Glue Making System | 1 | GF-T.Main Glue Making System. Main pot 1 set, carrier pot 1 set, and storage pot 1set Glue station pump, single facer glue pump and gluing machine glue pump. Circle supply glue, pipeline provided by customer |
| Optional part: | |||
| 1 | Splicer | 5 | |
All quotations remarks:
INSTALLATION:
*Delivery time :120 days after deposit
*Standard installation Time: 40 days
*Installation and debugging of number: 5 person
*Need 40 feet container 8(Four is high containers)
*Guarantee:one year after installation
marks:
*Preparation from the Buyer, before the arrival of our technician
*According to order information and installation requirement,
prepare necessary materials
*The buyer should bearing the cost of air ticket,hotel and food
*help to install the equipment, per engineer 80USD per day provide by buyer
|
