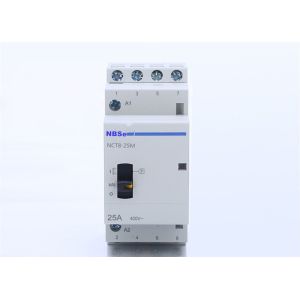

50/60Hz Coil 4P Modular Electrical Magnetic Contactor With Manual Handle

NCT series Modular AC contactor Can be used to remote control applications in the altermative networks:Lighting, heating, ventilation, roller blinds, sanitary hot water,Mechanical ventilation system, Load-shedding of non-priority circuits,etc.

AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.

Technical Data:

Rated current(In):20,25,40,63,80,100A

Rated operational voltage(Ue):230/240VAC,400/415VAC

Number of module:1M,2M,3M

Rated frenquency:50/60Hz

Utilization category:AC1,AC3,AC7a,AC7b,AC5b

Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)

Mechanical endurance:1,000,000cycles

Rated insulation voltage(Ui):500VAC

Rated impulse withstand voltage(Uimp):4KV

Terminal:pillar type

Cable termination:16/25mm2

Torque of screw:1.2/2Nm

IP degree:IP20

Standard:IEC/EN61095,IEC/EN60947-1

Catalog No. CTN Size:46.5x24x17.5CM

Product Dimension
