| Categories | Blowout Preventer BOP |
|---|---|
| Brand Name: | Hebei Pantu |
| Model Number: | 18 3/4″ |
| Certification: | API 16A |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 30000 set |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per 3 months |
| Delivery Time: | 7 work days |
| Packaging Details: | Iron Case |
| Name: | Dual Ram Blowout Preventer |
| Size: | 18 3/4 inch |
| Pressure: | 20,000psi |
| Gals to Open (1 set): | 122 |
| Other Name: | Pipe Ram Bop |
| Standard: | API 16 A |
| Company Info. |
| Hebei E-valves Petroleum Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

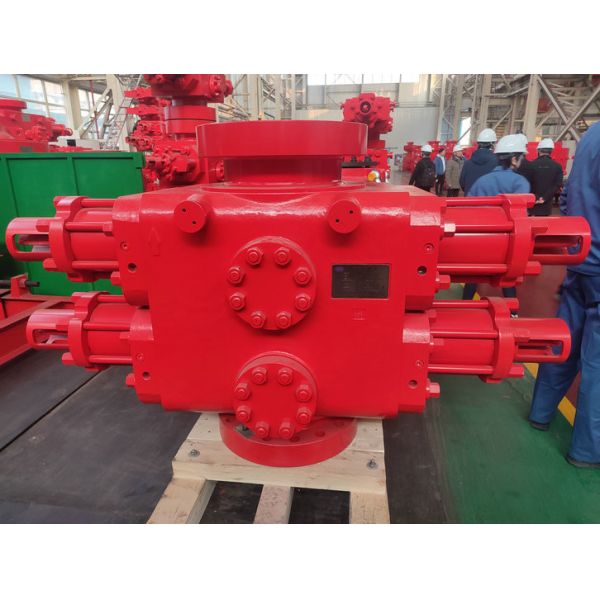

Dual Ram Blowout Preventer API 16 A Pipe Ram Bop
Ram Blowout Preventer can be used in workover and drilling operations equipped with hydril control systems. The BOPs are designed and manufactured in full conformity with the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the annular BOP can be used independently, it normally works with a single or a double e BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blowouts.
Dual Ram Blowout Preventer Paremeter
| Model | Gals to Open (1 set) | Gals to Close (1 set) | Closing Ratio | Assembly Dimension (in) | Approx Weight(lb) | ||||||
| Length (L) | Width (W) | Height (H) | |||||||||
| Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
| 4 1/16″-20,000psi(Single RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 33.27 | 18.11 | 23.82 | 3491 | 3147 | 3319 |
| 4 1/16″-20,000psi(Double RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 46.30 | 31.14 | 36.85 | 5742 | 5398 | 5570 |
| 7 1/16″-20,000psi(Single RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 48.03 | 24.02 | 35.83 | 10891 | 8951 | 9921 |
| 7 1/16″-20,000psi(Double RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 70.87 | 47.24 | 59.06 | 19826 | 17886 | 18812 |
| 11″-20,000psi(Single RS-FS) | 42.90 | 44.8 | 13.2 | 137.40 | 47.87 | 62.60 | 32.68 | 47.64 | 24030 | 19335 | 21682 |
| 11″-20,000psi(Double RS-FS) | 42.9 | 44.8 | 13.2 | 137.40 | 47.87 | 90.55 | 60.63 | 75.59 | 41987 | 37291 | 39639 |
| 18 3/4″-20,000psi(Double RS-FS) | 122 | 133 | 10.6 | 183.46 | 66.69 | / | / | 94.13 | / | / | 87083 |
Dual Ram Blowout Preventer Feature
1) Shape Generally, the BOP body is similar to a square, in the middle there is a vertical bore through which the pipes
can pass and the ram cavities in which the ram moves in the
horizontal direction.
2)Connection types The three connection types are studded, flange,
and clamped top and bottom connections. The sizes of flanges,
bolts, clamps, and ring grooves all conform to API standards.
|
