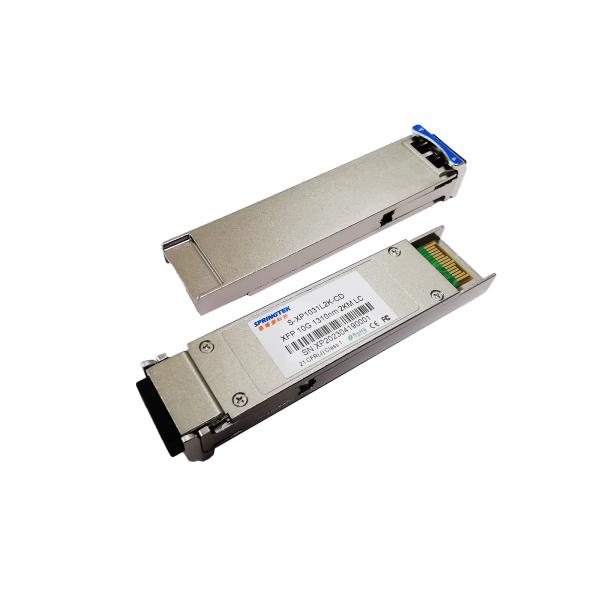

Springtek DDM Duplex LC XFP Compatible Optical 10G XFP Transceiver Single Mode

Springtek 10G XFP 1310nm 2KM Single Mode Dual Fiber DDM Duplex LC XFP Compatible Optical Transceiver

S-XP1031L2K-CD 221109.pdf

Ordering information

Description

Springtek XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 2km on SMF.

The transceiver module comprises a transmitter with 1310nm FP laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

• Supports 9.953Gb/s to 11.1Gb/s bit rates
• Hot-pluggable XFP footprint, Built-in digital diagnos
• Maximum link length of 2km with SMF
• 1310nm FP laser and PIN photodiode
• XFP MSA package with duplex LC connector
• No reference clock required
• Single +3.3V power supply
• Power dissipation <1.5W
• Compatible with RoHS
• Temperature range:0 to +70°C

Applications

• SONET OC-192&SDH STM-64 at 9.953Gbps
• 10GBASE-LR/LW 10G Ethernet
• 1200-SM-LL-L 10G Fibre Channel
• 10GE over G.709 at 11.09Gbps
• OC192 over FEC at 10.709Gbps
• Other optical links, up to 11.1Gbps

Absolute Maximum Ratings

Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.

Recommended Operating Conditions

Optical and Electrical Characteristics
