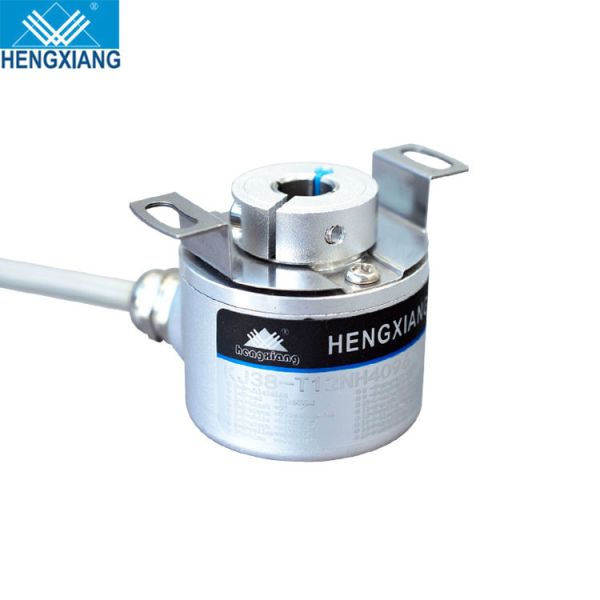

11 bits Hollow shaft gray code absolute encoder parahigh precision IP65 8mm shaft

11 bits Hollow shaft gray code absolute encoder parahigh precision IP65 8mm shaft

11 bits Hollow shaft gray code absolute encoder parahigh precision IP65 8mm shaft
11 bits Hollow shaft gray code absolute encoder parahigh precision IP65 8mm shaft
Categories Single Turn Absolute Encoder
Brand Name: HENGXIANG
Model Number: KJ38
Certification: CE
Place of Origin: Shanghai,China
MOQ: 1pcs encoder to start order
Price: negotiable
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Packaging Details: each 1 piece was packed into single carton box
External diameter: 38mm
Installation dimension: 45mm diameter
Hollow Shaft diameter: blind hole 5mm;6mm;8mm
Bit(steps): 5 bit-11 bit
Outlet type: radial cable;axial socket;radial cable with plug;axial cable with plug
Protection grade: IP50 ; IP65
Contact Now
Company Info.
Shanghai Hengxiang Optical Electronic Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

11 bits Hollow shaft gray code absolute encoder parahigh precision IP65 8mm shaft

Gray code 11 bits absolute encoder 5mm 6mm 8mm hollow shaft KJ38 IP65 high protection encoder


1. Feature: Gray code encoder, absolute type, single-turn, hollow shaft, IP65

high quality encoder chinese supplier in Shanghai.


2. Application: Motor, Digital control and other industrial automations.


3. Important parameters:

ItemsBasic parameters
BrandHENGXIANG
Encoder typeabsolute encoder
External diameter38mm
Thickness28mm
Installation dimension45mm diameter
Hollow shaft typeblind hole
Hollow Shaft diameter5mm;6mm;8mm
Bit(steps)5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit
Supply voltageDC5V ； DC8-30V
Outlet typeradial cable
axial socket
radial cable with plug
axial cable with plug
Count directioncounterclockwise
outside control direction
clockwise
InterfaceNPN low level effective
NPN high level effetive
PNP low level effective
PNP high level effetive
Protection gradeIP50 ; IP65
Cable length1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency100KHZ
Allowable ripple≤3%rms
Load Voltage≤DC30V
Output codegray code
Precision360/(resolution x 4)
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
starting torqueless than 9.8x10-³N.m
Intertia momentless than 6.5x 10-6kg.m2
Shaft loadRadial 50N; Axial 30N
Top REV≤3000 rpm; IP65≤2000 rpm(Through hole)
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20 ～+85°C(repeatable winding cable: -10°C)；storage:-25 ～+90°C
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,10-55Hz,2 hours for three axis individually
Sock(endure)49m/s2 , three times for X,Y,Z direction individually
Shaft MaterialStainless steel
Shell MaterialDie cast aluminium
Cable length1000mm(cable with shielding)
CertificationCE
packageCarton box
Net weightAbout 140g (with package)

Model Selection Guide

Manufacturing Dimensions
Product packaging
Product Usage
WHY CHOOSE HENGXIANG ?.
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard
