| Categories | Excavator Swing Gearbox |
|---|---|
| Brand Name: | Belparts |
| Model Number: | R380LC-9SH R430LC-9SH |
| Place of Origin: | Guangdong, China |
| Price: | negotiation |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Packaging Details: | Packaging Details: 1.According to orders,pack the spare parts one by one by oil paper; 2.Put them into small carton boxes one by one; 3.Put the packed small carton boxes into bigger carton boxes one by one; 4.Put the bigger carton boxes |
| Product name: | swing gearbox |
| Model: | R380LC-9SH R430LC-9SH |
| Weight: | 344KG |
| Brand: | Hyundai |
| Package: | 61*61*69 |
| Part number: | 31QA-10141 |
| Company Info. |
| GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

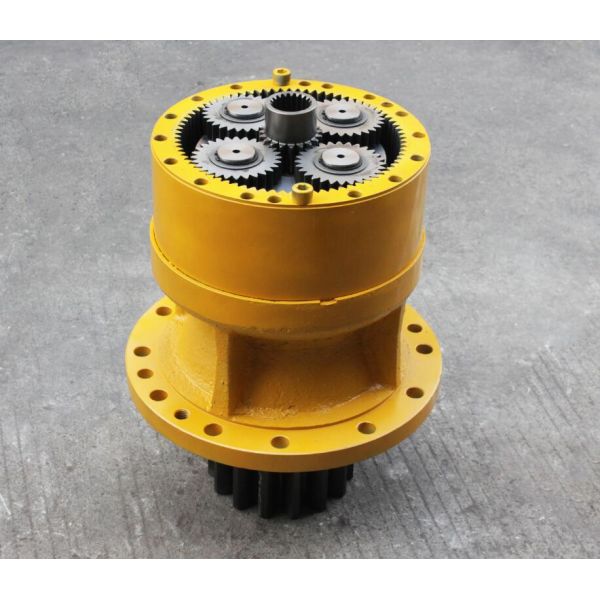

Excavator R380LC-9SH R430LC-9SH swing gearbox reduction 31QA-10141 swing gearbox
Product parameter:
Product name | swing gearbox |
| Weight | 344KG |
Model: | R380LC-9SH R430LC-9SH |
Part number: | 31QA-10141 |
Brand: | Hyundai |
Package: | 61*61*69 |
Delivery time: | Within 2 days after receiving the payment |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| *-2 | 31QA-10140 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00738 | CASING | 1 | |
| 2 | XKAQ-00739 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00146 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00171 | RING-SPACER | 1 | |
| 5 | XKAQ-00149 | SEAL-OIL | 1 | |
| 6 | XKAQ-00027 | BEARING-ROLLER | 1 | |
| 7 | XKAQ-00263 | CARRIER ASSY 2 | 1 | |
| 8 | XKAQ-00740 | CARRIER 2 | 1 | |
| 9 | XKAQ-00741 | GEAR-PLANET 2 | 4 | |
| 10 | XKAQ-00742 | PIN ASSY 2 | 4 | |
| 11 | XKAQ-00254 | PIN ASSY 2 | 1 | |
| N12 | XKAQ-00255 | BUSHING 2 | 1 | |
| 13 | XKAQ-00165 | PIN-SPRING | 1 | |
| 14 | XKAQ-00156 | WASHER | 4 | |
| 15 | XKAQ-00050 | PIN-SPRING | 4 | |
| 16 | XKAQ-00412 | CARRIER ASSY 1 | 1 | |
| 17 | XKAQ-00743 | CARRIER 1 | 1 | |
| 18 | XKAQ-00414 | GEAR-PLANET 1 | 4 | |
| 19 | XKAQ-00744 | PIN 1 | 4 | |
| 20 | XKAQ-00030 | CAGE-NEEDLE | 4 | |
| 21 | XKAQ-00417 | PLATE-SIDE 1 | 4 | |
| 22 | XKAQ-00416 | PLATE-SIDE 2 | 4 | |
| 23 | XKAQ-00041 | RING-STOP | 4 | |
| 24 | XKAQ-00048 | PIN-SPRING | 1 | |
| 25 | XKAQ-00260 | RING-THRUST | 1 | |
| 26 | XKAQ-00745 | GEAR-SUN 2 | 1 | |
| 27 | XKAQ-00746 | GEAR-SUN 1 | 1 | |
| 28 | XKAQ-00420 | GEAR-RING | 1 | |
| 29 | XKAQ-00072 | PIN-KNOCK | 2 | |
| 30 | XKAQ-00747 | PLATE-COVER | 1 | |
| 31 | XKAQ-00148 | BOLT-HEX | 8 | |
| 32 | XKAQ-00748 | SPACER | 1 | |
| 33 | XKAQ-00749 | GEAR-PINION | 1 | |
| 34 | XKAQ-00299 | PLATE-LOCK | 1 | |
| 35 | XKAQ-00042 | BOLT-HEX | 4 | |
| 36 | XKAQ-00292 | WASHER-LOCK | 2 | |
| 37 | XKAQ-00274 | PLUG | 2 | |
| 38 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 39 | XKAQ-00259 | BOLT-SOCKET | 16 | |
| 40 | XKAQ-00750 | COVER | 1 | |
| 41 | XKAQ-00751 | O-RING | 1 | |
| 42 | XKAQ-00170 | BOLT-HEX SOCKET | 4 | |
| 43 | XKAQ-00066 | PLUG | 1 | |
| 44 | XKAQ-00155 | PLUG-SOCKET | 1 | |
| 45 | XKAQ-00143 | AIR BREATHER ASSY | 1 | |
| 46 | XKAQ-00167 | PIPE-GAUGE | 1 | |
| 47 | XKAQ-00166 | BAR-GAUGE | 1 |
|
