| Categories | Perimetry Test Machine |
|---|---|
| Brand Name: | SYSEYE |
| Model Number: | BIO-1100 |
| Certification: | TUV |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $5,500.00-$6,600.00 |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
| Delivery Time: | 5 working days |
| Packaging Details: | 412mm(length)* 497mm(width)* 513mm(height) |
| Product name: | Measure Eye Field Perimetry Test Machine |
| Background light: | white 31.5asb、yellow 315asb |
| Visual target: | Red ,blue |
| Power: | 100-240V HZ:50-60Hz |
| Testing scope: | 90° |
| Testing distance: | 30CM |
| Target size: | Goldmann I, II, III, IV，V |
| Company Info. |
| Chongqing Bio Newvision Medical Equipment Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
visual field test machine configuration, comprehensive software inspection categories

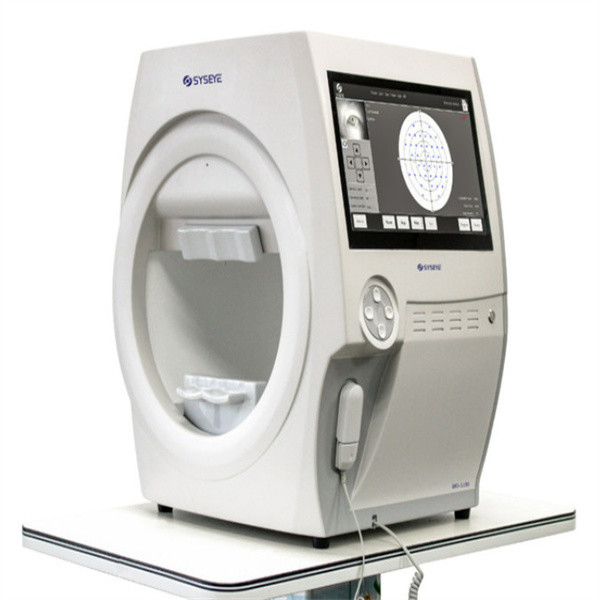

The Bio-1100 projection perimeter refers to Goldmann international standards, it integrates a variety of features. The background illumination, the size of the stimulus cursor and its brightness are standardized. Dynamic and static visual field detection can be performed, so that the whole picture of the visual field can be understood. It is used for the diagnosis and monitoring of glaucoma, vision and optic nerve diseases.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530 yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring, eye position moving alarm,eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power | 100-240V HZ:50-60Hz | |
Feature of Perimetry Test Machine
* Impact body, Humanize design
* Equipped with a variety of fixation monitoring programs to ensure
accurate measurement data and high reliability of measurement
results
* Abundant inspection modes for both accuracy and speed
* Comprehensive Analysis Software
Perimetry Test Machine other feature
* Scientific intelligent interactive detection strategy, 30 ° It
only takes 3 minutes to detect the range visual field.
* Simple one-stop modular software design, equipment operation
learning only takes 2 minutes
* the same function of Zeiss Humphrey 860
* Halogen projection system: the stimulating light source comes
from the broadband visible spectrum, which fully meets the
stimulation of color cone cells.
