| Categories | Fishing Line Extrusion |
|---|---|
| Brand Name: | LEAP |
| Model Number: | RS90 |
| Certification: | CE/ISO90001 |
| Place of Origin: | CHANGZHOU,CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 50 sets per year |
| Delivery Time: | 30 working days |
| Packaging Details: | Acceptable customization |
| raw material: | Nylon |
| Name: | Trammel Gill Nets |
| application: | Nets |
| diameter: | 0.4mm |
| power: | 330kw |
| screw diameter: | 80mm |
| L:D: | 30:1 |
| color: | customized |
| Company Info. |
| Changzhou Leap Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Fishing Line Extrusion For 0.4mm Nylon Monofilament Trammel Gill Nets
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 80mm, Screw speed: 0～80 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA.
(3) Pressure automatic feedback system.
(4) Melt pump 1 set, rotation speed: 0-45 rpm.
(6) Round spinneret: 1 set.
2. Quenching tank: 1 set
3. Seven roller stretching unit A: 1 set
(1) Seven variable diameter rollers.
(2) Steel box with accurately grind gear.
(3) Working height: 1200mm
4. Hot water tank: 1 set
(1) Tank size: 4000mm
(2) Water removal device: 2 sets with suction.
5. Seven roller stretching unit B: 1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Equip 1 pressing roller.
(3) Working height: 1200mm
6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2
7. Seven roller stretching unit C, with brake resistor
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Equip 1 pressing roller.
(3) Working height: 1200mm
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 5000 mm
(2) Heating power 23kw×2
9. Seven roller stretching unit D: 1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Working height: 1200mm
10. Lubricating system: 1 set

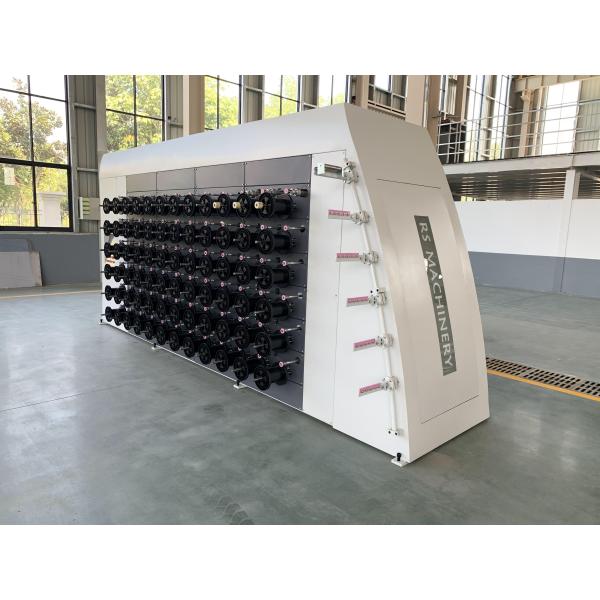

11. Spindle winder: 60 spindles
(1) Winding motor: 15KG
Specification:
| Screw diameter | Φ80mm | ||
| Raw material | Nylon | Filament size | 0.4mm |
| Type | signle exruder | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 60 spindles |
| Max linear speed | 110m/min | Instillation power | 350Kw |
| Nozzle holes | 50 | Overall size | 50×2.8×2.8m |
