| Brand Name: | HAISEN |
| Model Number: | HT36V |
| Certification: | CE TUV RED |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 1-3 days for sample order, 1-2 weeks for bulk order |
| Packaging Details: | Bubble pack, paper flat, outer carton |
| Output LED power: | Max. 36W |
| EMC standard: | EN55015 |
| Microwave frequency: | 5.8GHz±75MHz |
| Mounting height: | Max.6m/19.68ft |
| Warranty: | 3 years |
| IP rating: | IP 20 |
| Company Info. |
| Shenzhen HAISEN Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

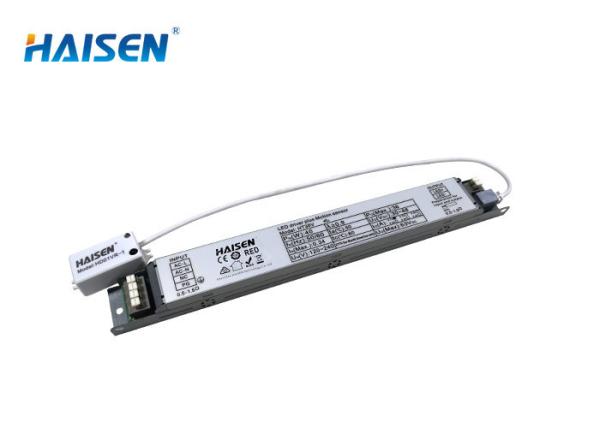

Dimming Function Datachable Remote Control Setting Sensor 3 Years Warranty
Features:
Product Description
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable |
| Stand-by period | 0S/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Input voltage | 120~240 ~277VAC 50/60Hz |
| Input current | 0.34A Max |
| Input power | 40W Max |
| Detection area | 25%/50%/75%100% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection angle | 30°-150° |
| Mounting height | Max.6m |
| Detection range | Max.ø14m |
| Output LED current | Max.0.75A |
| Output LED voltage | 30A-48V DC |
| Output LED power | 36W |
| Empty load voltage | ≤63VDC (Max) |
| Power factor | ≥0.9 |
| Efficiency | 87% (Max.) |
| Operating temperature | ta:-20°C~50°C Tc: 80°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| Installation | Installed inside |
|   |
