| Categories | Rigid Stranding Machine |
|---|---|
| Place of Origin: | Wuxi |
| Brand Name: | HNT |
| Certification: | ISO9001:2008, CE, High-tech enterprise |
| MOQ: | 1 set |
| Price: | negotiable |
| Packaging Details: | according to customer's requirements |
| Delivery Time: | 30-120 days |
| Payment Terms: | T/T, L/C |
| Application Wire Dia.: | Max. 5.0mm |
| Wire Application: | 127wires |
| Capstan Dia.: | 2000 or 2500mm |
| Line Speed: | Max. 100m/min |
| Application Bobbin: | φ630mm, φ710mm |
| Application: | Copper or aluminum conductors stranding |
| Company Info. |
| Wuxi Hengtai Cable Machinery Manufacture Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

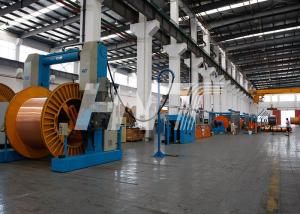

Rigid Frame Stranding Line:
Machine Application:
Automatic Bobbin Batch Loading suitable for production of - up to
3000 sq mm (Milliken) - 500 kV EHV Power Cables - up to 2000 sq mm
highly compacted conductor (by die / roll) - New Genernation
Pre-shaped Wire (TW) - Composite Overhead Conductor - Overhead
Conductor ACSR/AAAC/AAC - Copper Screening of Power Cables - Steel
Wire / Strip Armouring of Power Cables;
Separate AC Motor Drive easy control;
Line Main Parts:
| Payoff | 1set |
| Wire Guider | 1set |
| Stranding cage | Each 1set |
| single wire pre-twisted | Each 1set |
| Wire Closing and Press mold base | Each 1set |
| Meter Counter | 1set |
| Double wheel capstan 2000/2500 | 1set |
| Side/bottom Lumped loading system | 3set |
| Take up | 1set |
| Electric control system | 1set |
Main Technical Date:
| Machine Model | JLK-630 | JLK-710 |
| Single Copper Wire Dia. | Φ1.7~Φ4.5mm | Φ1.7~Φ4.5mm |
| Single Alumium Wire Dia. | Φ1.8~Φ5.0mm | Φ1.8~Φ5.0mm |
| Single Alumium Alloy Wire Dia. | Φ1.7~Φ4.5mm | Φ1.7~Φ4.5mm |
| Max. stranded wire dia. | Φ30-55mm | Φ30-55mm |
| Lay length | 40~350mm(step-less adjust) | 40~350mm(step-less adjust) |
| Max rotate speed | 500rpm | 500rpm |
| Max line speed | 100m/min | 100m/min |
| Max rewinding speed | 150~200m/min | 150~200m/min |
| Pay off in Cage | 630 | 710 |
| Centre Payoff | PND630/1600 | PND630/1600 |
| Dual Wheel Capstan | 2000mm, 2500mm | 2000mm, 2500mm |
| Cage rotate motor | Siemens AC Motor | Siemens AC Motor |
| Stranding Cage Structure | 6B, 12B, 18B, 24B, 30B, 36B | 6B, 12B, 18B, 24B, 30B, 36B |
| Loading Method | Side loading or Bottom loading | Side loading or Bottom loading |



|   |
