| Categories | IPC Embedded |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN32-8F1E1 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | To be negotiated |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| Delivery Time: | 15-30 work days |
| NAME: | PLINK Embedded PC Embedded Computer Solutions NVIDIA Jetson AGX Orin 32G |
| Keyword: | PLINK Embedded PC Embedded Computer Solutions NVIDIA Jetson AGX Orin 32G |
| AI Performance: | 200 TOPS |
| GPU: | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| GPU Max Frequency: | 930 MHz |
| CPU: | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Max Frequency: | 2.2 GHz |
| DL Accelerator: | 2x NVDLA v2 |
| DLA Max Frequency: | 1.4 GHz |
| Memory: | 32GB 256-bit LPDDR5 204.8GB/s |
| Storage: | 64GB eMMC 5.1 |
| Display: | 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| USB Micro-B: | 1 x Micro-B |
| USB Type-A: | 1 x USB 3.1 |
| Other I/O: | 4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) 2 x CAN (with on-board transceiver) |
| Networking: | 2 x 10/100/1000 Ethernet/RJ45 |
| Power Supply: | AC 220V |
| Temperature: | -20~+65°C |
| Size: | 391mm × 303mm × 185mm |
| Weight: | 7700g |

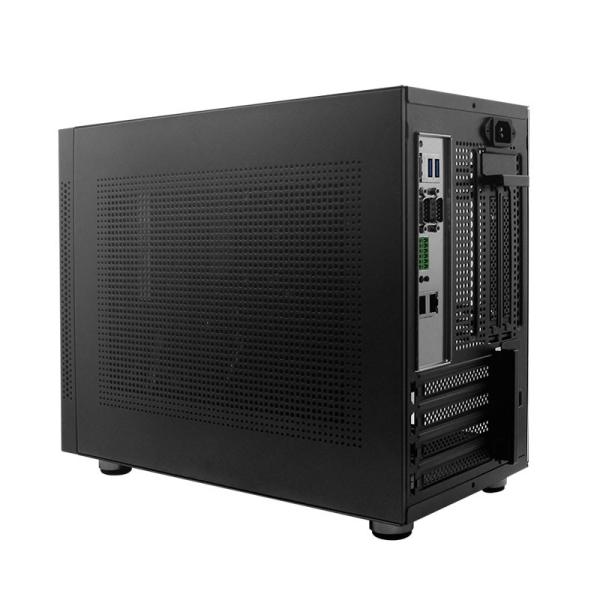

PLINK Embedded PC Embedded Computer Solutions NVIDIA Jetson AGX Orin 32G
The industrial embedded pc solutions ORIN32-8F1E1 is compare with NVIDIA Jetson AGX Orin 32GB core module, it serves for cloud services, smart cities, healthcare, agriculture, Industrial, Energy & Mining , Retail, Construction,Robotics & Logistics,education and scientific research etc. and the NVIDIA Jetson Orin 32GB module have Up to 200 TOPs (INT8), 1792 NVIDIA® CUDA® cores | 56 Tensor cores Ray-Tracing cores, Arm Cortex-A78AE CPU.
embedded pc solutions Product Features and Specifications
NVIDIA Jetson AGX Orin 32G Industrial Embedded Computer
Brand | PLink |
Name | ORIN32-8F1E1 |
Module | NVIDIA Jetson AGX Orin 32G |
Power | DC +12V |
AI Performance | 200 TOPS |
Networking | 2 x 10/100/1000 Ethernet/RJ45 |
Temperature | -20℃ ~ 65℃ |
Memory Type | 256-bit LPDDR5 |
Maximum Memory Bus Bandwidth | 204.8 GB/s |
Maximum Capacity | 32 GB |
Size | 391mm × 303mm × 185mm |
Storage | 64GB eMMC 5.1 |
Weight | 7700g |
Video Encode | 1x 4K60 (H.265) |
Video Decode | 1x 8K30 (H.265) |
|
