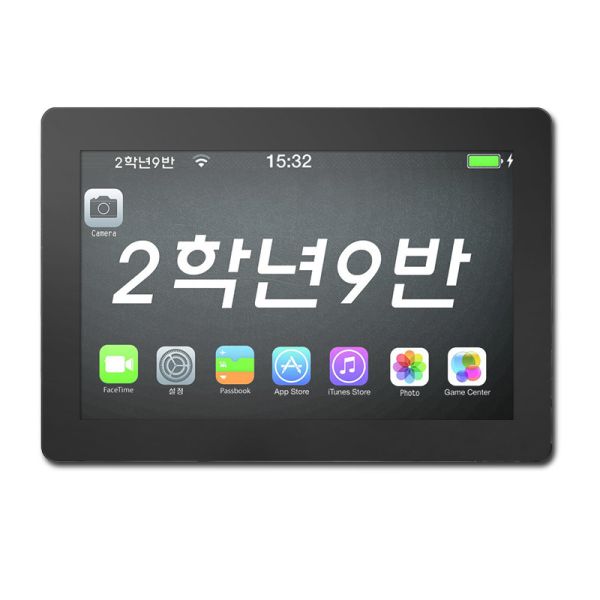

Touch Screen 10'' IPS TFT LCD Module 1280x800 With LVDS Interface

Description of Touch screen 10.1 inch ips tft lcd module

TST0101WXBN-69C is touch screen 10.1 inch ips LCD display, it's with standard capacitive touch screen, we could also make the tooling of touch screen basing on your various requirement, like adding logo, different silk screen, shape and many other functions. This touch screen 10.1 inch display is with high brightness, for outdoor using, the TFT is 1000 cd/m2, after adding Capacitive touch screen, transmittance rate is 80%, so the brightness is around 800 cd/m2 with touch screen, and it's standard industrial-grade display which operating temperature is -20 to 70 degress.

Specification of Touch screen 10.1 inch

Feature of touch screen 10.1 inch

Backlight Type: 36 LEDs

Pixel pitch: 0.1695x0.1695mm

Surface Treatment: Hardness, 6H

Color Depth: 16.7M

RoHs Compliant

Number of Pins: LCD 40 PINS, CTP 6 PINS

LED Lifetime: Min 30,000 Hrs, Max 50,000 Hrs

Viewing Angle: Top 80, Bottom 80, Left 80, Right 80

Advantage of touch screen 10.1 inch

TEAM SOURCE DISPLAY is available to provide full ranges of LCD display from 0.96 inch to 21.5 inch TFT, as well as this Touch screen 10.1 inch LCD, also have the ability to provide all kinds of standard capacitive touch panel and make the customization of various capacitive touch panel basing on customers' requirement.

Please let us know your requirements on touch screen:

1) Size and shape

2) Thickness of cover glass: 0.7mm/1.1mm/1.8mm/2.8mm/3.8mm etc.

3) Requirement of touch IC: Focal Tech/EETI/Atmal/Ilitek/Goodix/Sitronix etc.

4) Silk screen color: providing pantone number or sample color

5) Logo/windorws/holes on cover glass

6) Any special surface treatment on cover glass

7) CTP interface: IIC or USB

We will quote you the detail price with above information and provide a better choice for you.

FAQ of touch screen 10.1 inch

Q: What else models do you have for touch screen 10.1 inch LCD display?

A: For 10.1 inch LCD display, we have different kinds of resolution, like 1024×600,800×1280, 1200×1920 resolution etc.

For the brightness, we have different kinds of luminance to meet customer's need for indoor and outdoor application.

For the interface, we have RGB, LVDS, MIPI, HDMI, etc.

For the voltage, we have single voltage (only VDD) and multi voltage for customer to choose.

There are standard & customized available for all series display, any further interests, just contact Team Source Display.

Q: How do you pack and ship out the goods?

A: For each piece of touch screen 10.1 inch LCD dispay, we will pack it in anti-static bag, and then pack it into blister tray or EPE foam

card slot in a certain quantity in one carton box. Each carton box will have inner and outbox boxes, so as to make sure

every LCD display will be packing well before shipping.
