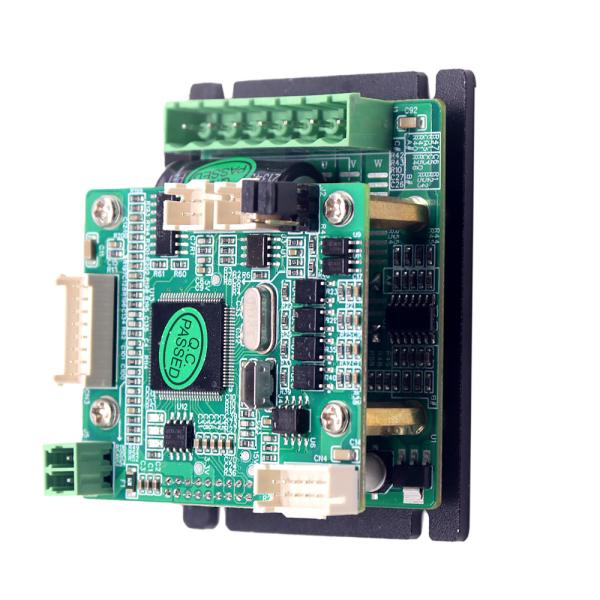

Name: Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V
Brand: Jiayu
Price: 1 USD

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Categories	DC Servo Motor Drive
Brand Name:	Jiayu
Model Number:	L12-10612-ST-EC-00(EtherCAT，incremental encoder）
Place of Origin:	China
MOQ:	5 pcs
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	5000 per year
Delivery Time:	7 days
Packaging Details:	carton
Power input:	DC18V~48V
Encoder feedback:	Incremental Encoder
Pulse quantity input:	5V differential input 0 to 4MHz; 24V single-ended input 0 to 200kHz
Digital inputs and outputs:	4 INPUT 2 OUTPUT
Communication:	EtherCAT
Protection:	Phase to phase short circuit
Rated output current:	12A
Ambient humidity:	Ambient humidity
Control method:	Position control Internal position command control

Contact Now

Add to Cart

Company Info.

Shenzhen Jiayu Mechatronic Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Compact Design EtherCAT servo drive Incremental Encoder DC10V to DC36V Robotics Servo Drive

Application features of DC Servo Motor Drive

1. Adaptation to DC servo motors up to 400W, 750W, 1000W,
supporting incremental and absolute encoders.

2. Support for position control, speed control, torque control and
single axis control modes.

3. EtherCAT communication for multi-axis device control.

Complementary functions of DC Servo Motor Drive
1. Modbus serial communication protocol (RS485).
2. Upper computer software with oscilloscope function for parameter
modification and monitoring and commissioning.
3. Provision of serial port burn-in download tools and support for
online remote serial port upgrades.
Application Features of DC Servo Motor Drive
Control method
① Position control
② Internal position command control
Position control
①Pulse volume input; electronic gear ratio;
②support for positioning completion output function.
Single axis control
①Internal command control;
②support for zero return, jogging, positioning and limit functions.
IO control
①Support for enable inputs, alarm clear inputs, command disable
inputs, positive and negative limit inputs, etc..
②Support for servo-ready outputs, alarm outputs, holding brake
control outputs, etc..
Hardware specifications
Power input
DC18V~48V
Overload
Load≦200%, overload time﹤120S
200%﹤load﹤300%,overload time﹤5S
Encoder feedback
Incremental encoders (standard incremental, wire-saving, ABZ
without Hall only)
Absolute encoders (single/turn/multi-turn, RS485 protocol)
Pulse quantity input
5V differential input 0 to 4MHz; 24V single-ended input 0 to
200kHz.
Digital inputs and outputs
4 digital signal inputs, 12~24V, polarity selectable (isolated)
2 digital signal outputs, 12~24V, 50mA, polarity selectable
(isolated), voltage drop ≤ 0.8V.
Protection
Phase to phase short circuit, 5V short circuit
Busbar overvoltage protection, overcurrent protection

Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with
multiple invention patents and software copyrights such as servo
drive and channel gate control technology. Jiayu is committed to
the R&D, production, sales and pre-sales and after-sales
service of the core module of the automatic gate control movement.
It is a main module supplier in the domestic gate control industry
and provides professional product solutions for customers.

Product Tags:

DC36V EtherCAT Servo Drive

DC10V Robotics Servo Drive

DC36V Robotics Servo Drive

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Jiayu Mechatronic Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

DC36V EtherCAT Servo Drive

DC10V Robotics Servo Drive

DC36V Robotics Servo Drive

Compact Design EtherCAT Robotics Servo Drive DC10V To DC36V

Our Mission

Main Products Lines

JIAYU In Brief

Power input	DC18V~48V
Overload	Load≦200%, overload time﹤120S 200%﹤load﹤300%,overload time﹤5S
Encoder feedback	Incremental encoders (standard incremental, wire-saving, ABZ without Hall only) Absolute encoders (single/turn/multi-turn, RS485 protocol)
Pulse quantity input	5V differential input 0 to 4MHz; 24V single-ended input 0 to 200kHz.
Digital inputs and outputs	4 digital signal inputs, 12~24V, polarity selectable (isolated) 2 digital signal outputs, 12~24V, 50mA, polarity selectable (isolated), voltage drop ≤ 0.8V.
Protection	Phase to phase short circuit, 5V short circuit Busbar overvoltage protection, overcurrent protection
