| Categories | Graphic LCD Module |
|---|---|
| Brand Name: | HOTHMI |
| Model Number: | HTM240128A |
| Place of Origin: | dongguan,China |
| MOQ: | 2 |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 99999 |
| Delivery Time: | 25 days |
| Product Type: | Standard COB Dot Matrix Module |
| Display content: | 240x128 |
| Product Application: | Industrial Control Equipment |
| Viewing Angle: | 6H |
| Number of PINS: | 21PIN |
| Special Instructions: | MCU/8bit |
| Driver chip model: | T6963C |
| Company Info. |
| Hotdisplay Technology Co.Ltd |
| View Contact Details |
| Product List |

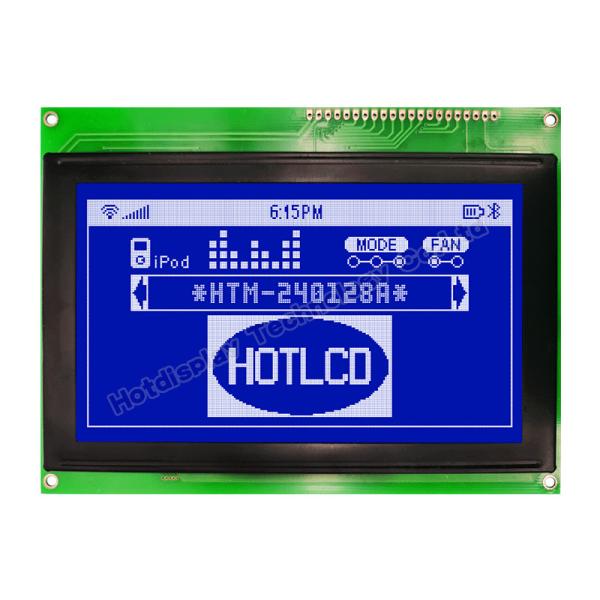

240X128 Graphic LCD Module | STN Positive Display With White Backlight T6963C/HTM240128A
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 240*128 DOTS | ---- |
| Module dimension | 144.0x104.0x14.6 | mm |
| View display area | 114.0x64.0 | mm |
| Dot size | 0.40(W) x 0.40(H) | mm |
| Dot pitch | 0.45x0.45 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V | |
Viewing direction | 6 O’CLOCK | |
Display mode | STN/ (gray) | |
Display type | TRANSMISSIVE / NEGATIVE | |
Driver IC | T6963C or EQUIV | |
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 144.0x104.0x14.6 | mm |
| Viewing Area | 114.0x64.0 | mm |
| Mounting Hole | 107.95W × 57.55 | mm |
| Dot Pitch | 0.40(W) x 0.40(H) | mm |
| Dot Size | 0.32(W) x 0.30(H) | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. | Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
Interface Pin Function
| NO. | SYMBOL | FUNCTION |
| 1 | FGND | Frame ground |
| 2 | VSS | Ground potential (Logic) |
| 3 | VDD | Power supply for logic circuit |
| 4 | VO | Power supply for LCD circuit |
| 5 | /WR | Data write |
| 6 | /RD | Data read |
| 7 | /CE | Chip enable |
| 8 | C/D | Command/Data |
| 9 | /RES | Controller reset |
| 10 | DB0 | Data bus line |
| 11 | DB1 | Data bus line |
| 12 | DB2 | Data bus line |
| 13 | DB3 | Data bus line |
| 14 | DB4 | Data bus line |
| 15 | DB5 | Data bus line |
| 16 | DB6 | Data bus line |
| 17 | DB7 | Data bus line |
| 18 | FS | Font select H:6x8 L:8x8 |
| 19 | VEE |  |
| 20 | BLA |  |
| 21 | BLK |  |
POWER SUPPLY FOR BACKLIGHT
| ITEM | LED Backlight |
| Use Inverter Type | -- |
| Color | White |
| Backlight Input Voltage | DC +5.0 V |
| Backlight Frequency | -- |
| Backlight Current | 180 mA |
| Inverter Input Voltage | -- |
| Inverter Current Density | -- |
Command list
| COMMAND | OCDE | D1 | D2 | FUNCTION |
| REGISTER SET | 00100001 00100010 00100100 | X adrs data Low adrs | Y adrs 00H High adrs | CURSOR POINTER SET OFFSET REGISTER SET ADDRESS POINTER SET |
| CONTROL | 01000000 | Low adrs | High adrs | TEXT HOME ADDRESS SET |
| WORD | 01000001 | Columns | 00H | TEXT AREA SET |
| SET | 01000010 | Low adrs | High adrs | GRAPHIC HOME ADDRESS SET |
| 01000011 | Columns | 00H | GRAPHIC AREA SET | |
| MODE | 1000X000 | - | - | “OR” mode |
| SET | 1000X001 | - | - | “EXOR mode |
| 1000X011 | - | - | “AND” mode | |
| 1000X100 | - | - | “TEXT ATTRIBUTE” mode | |
| 10000XXX | - | - | Internal CG ROM Mode | |
| 10001XXX | - | - | External CG RAM mode | |
| DISPLAY | 10010000 | - | - | DISPLAY OFF |
| MODE | 1001XX10 | - | - | CURSOR ON, BLINK OFF |
| 1001XX11 | - | - | CURSOR ON, BLINK ON | |
| 100101XX | - | - | TEXT ON, GRAPHIC OFF | |
| 100110XX | - | - | TEXT OFF, GRAPHIC ON | |
| 100111XX | - | - | TEXT ON, GRAPHIC ON | |
| CURSOR | 10100000 | - | - | 1 LINE CURSOR |
| PATTERN | 10100001 | - | - | 2 LINES CURSOR |
| SELECT | 10100010 | - | - | 3 LINES CURSOR |
| 10100011 | - | - | 4 LINES CURSOR | |
| 10100100 | - | - | 5 LINES CURSOR | |
| 10100101 | - | - | 6 LINES CURSOR | |
| 10100110 | - | - | 7 LINES CURSOR | |
| 10100111 | - | - | 8 LINES CURSOR | |
| DTAT | 10110000 | - | - | DATA AUTO WRITE SET |
| AUTO | 10110001 | - | - | DATA AUTO READ SET |
| READ/WRITE | 10110010 | - | - | AUTO RESET |
| DATA | 11000000 | data | - | DATA WRITE AND ADP INCREMENT |
| READ | 11000001 | - | - | DATA READ AND ADP INCREMENT |
| WRITE | 11000010 | data | - | DATA WRITE AND ADP DECREMENT |
| 11000011 | - | - | DATA READ AND ADP DECREMENT | |
| 11000100 | data | - | DATA WRITE AND ADP | |
| 11000101 | - | - | NONVARIABLE | |
| DATA READ AND ADP | ||||
| NONVARIABLE | ||||
| SCREENPEEK | 11100000 | - | - | SCREEN PEEK |
| SCREEN COPY | 11101000 | SCREEN COPY | ||
| 11110XXX | - | - | BIT RESET | |
| 11111XXX | - | - | BIT SET | |
| 1111X000 | - | - | BIT0 (LSB) | |
| 1111X001 | - | - | BIT1 |
|
