| Categories | Electric Linear Actuators |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-22 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 29-299 USD/PCS |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Delivery Time: | 20 Days |
| Packaging Details: | Paper gift box, 8 PCS/Carton |
| Voltage Related: | 24V/36V DC, thermal protector |
| Max load: | 10,000N (push); 5,500N (pull) |
| Max. speed at max. load: | 4.5mm/s |
| Retracted length: | ≥ Stroke + 210mm |
| Stroke: | 30~800mm |
| Color: | Black, Grey |
| Warranty: | 1 Year |
| Customization: | Available |
| Company Info. |
| LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
The LS-PAT-22 electric linear actuator was specifically designed for bariatric bed applications. These beds require a robust, long life solution that incorporates safety, reliability and effortless operation. A significant feature of the LS-PAT-22 linear actuator is the quick release function that allows for lowering of the patient in the event of an emergency or electrical power outage.
| Linear Actuator | LS-PAT-22 |
| Voltage of motor | 24V/36V DC, thermal protector |
| Maximum load | 10,000N (push); 5,500N (pull) |
| Maximum speed at full load | 4.5mm/s |
| Stroke | 30~800mm |
| Retracted length | ≥ Stroke + 210mm |
| Output signals | POT, Reed, Hall sensors |
| Color | Black, Grey |
| Operational temperature range | +5°C~+45°C |
Application

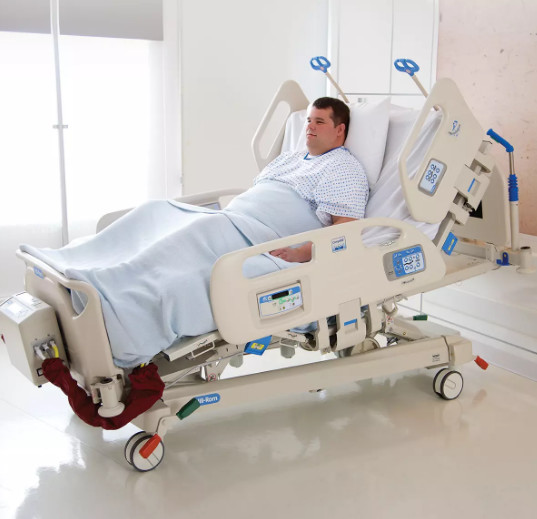

Specifically designed for bariatric bed applications.
Drawing Of Electric Linear Actuator
Standard Dimension (mm)
|
