| Categories | Inverter MMA Welder |
|---|---|
| Brand Name: | JONE |
| Model Number: | MMA-300C |
| Certification: | CE |
| Place of Origin: | GUANGDONG,CHINA |
| MOQ: | 500 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 70000 PCS per /month |
| Delivery Time: | 4 WEEKS |
| Packaging Details: | CARTON |
| Price: | Negotiate |

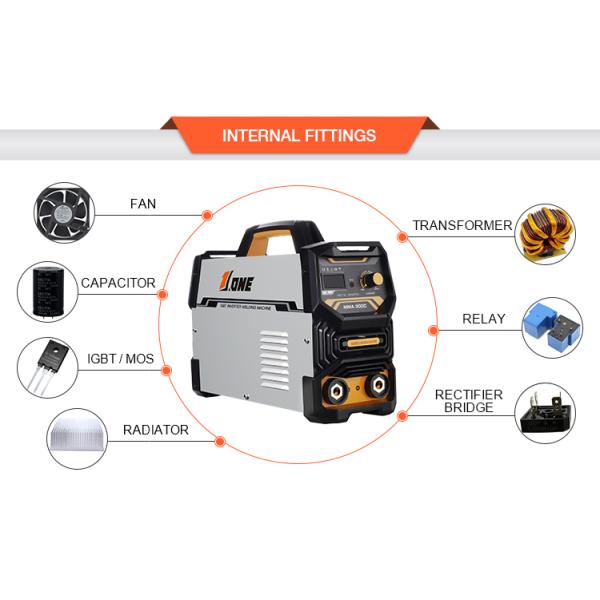

| Type: | IGBT 1 PCB |
| Rated Input Power Capacity(KVA): | 7 |
| Input Frequency(Hz): | 50/60 |
| Non-load Voltage(V): | 56 |
| Output current range(A): | 20-300 |
| Rated Duty Cycle(%): | 60% |
| Efficiency(%): | 85% |
| Class of Insulation: | F |
| Protection class of case: | IP21 |
| Electrode diameter(mm): | 1.6-4.0 |
| Quick joint Size(mm): | 35-50 |
| Input power cable(m): | 1.8 |
| N.W./G.W.(kg): | 4.2/6 |

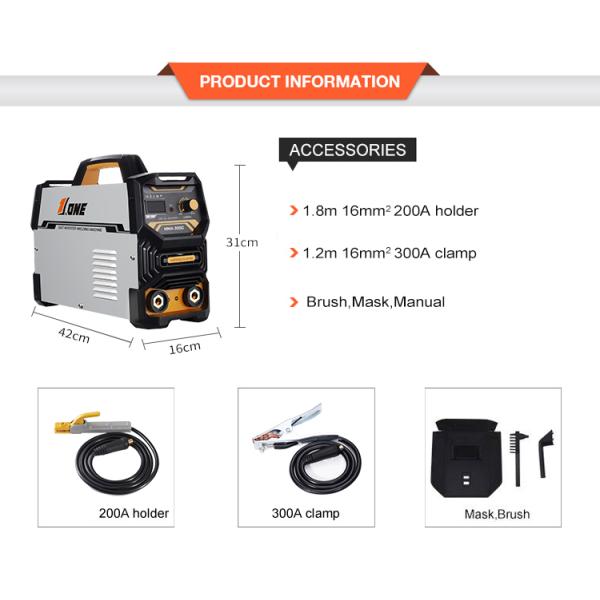

| Accessories: | holder、clamp、mask、brush、manual |
| Usage: | Welding |
| Machine Size(L*W*H): | 420*160*310MM |
| Warranty: | 24Months |
rod 6011 6013 7018 stick welder inversora de solda bivolt inversora other arc welders MMA welding machine
technical parameter
| Model | MMA-200C | MMA-250C | MMA-300C |
| Type | IGBT 1PCB | IGBT 1PCB | IGBT 1PCB |
| AC Input Voltage(V) | 220V (110V/220V can do) | 220V (110V/220V can do) | 220V (110V/220V can do) |
| Rated Input Power Capacity(KVA) | 5 | 6.2 | 7 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter (mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Quick joint Size(mm) | 35-50 | 35-50 | 35-50 |
| Input power cable(m) | 1.8 | 1.8 | 1.8 |
| N.W./G.W.(kg) | 3.8/5.6 | 4/5.8 | 4.2/6 |
| Machine Size(LxWxH mm) | 420*160*310 | 420*160*310 | 420*160*310 |
| Package(LxWxH mm) | 455*270*355 kraft paper box | 455*270*355 kraft paper box | 455*270*355 kraft paper box |
| Accessories | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder | 1.8m 16mm² 200A holder |
| 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | 1.2m 16mm² 300A clamp | |
| mask,brush,belt,manual | mask,brush,belt,manual | mask,brush,belt,manual |
|
