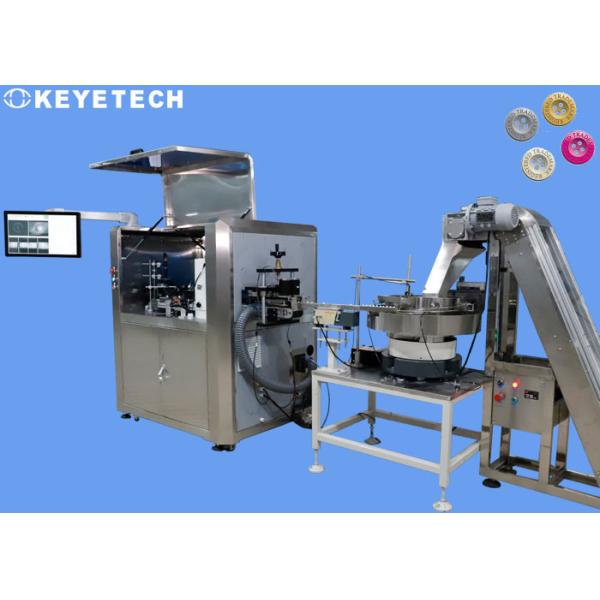

Buttons Visual Inspection System With Machine Conveyor Device

Buttons Visual Inspection System With Machine Conveyor Device

System description

The system adopts imported high-resolution industrial cameras, which can quickly acquire images. Through image recognition, analysis and calculation, it can detect whether there are defective products in button production in real time, and output corresponding detection signal prompts to facilitate the processing of defective products.

Inspection principle

This system uses industrial cameras to detect buttons in production, and uses advanced image visual detection technology. The image processing system preprocesses each image, performs calculations on relevant features, detects whether the product is qualified, and outputs corresponding detection signals.

System design scheme
The button detection system developed based on machine vision image processing technology has the characteristics of high precision, high speed and multi-sample. The main modules of the system are: image acquisition module, image processing module. The device can quickly analyze and process the image and output the detection signal after collecting the image according to the user's needs, so as to complete the detection.

Main functions of the system
1. Automatically complete the detection of electronic devices to detect whether the products are defective;
2. It can be set and tested according to different specifications and product types;
3. Automatically store product images, and can perform historical query;
4. Automatic statistics (good, bad, total, etc.);
5. The test result can output the corresponding number and display it on the interface;
6. The system has a self-learning function, and the learning process is easy to operate.

Main technical characteristics
1. The operation interface is clear and clear, simple and easy to operate, and the detection can be automatically performed with a simple setting;
2. The detection software and algorithm are completely independently developed, and the system is highly targeted;
3. Partial detection can be selectively carried out to improve the flexibility of detection;
4. Professional light source design, clear and uniform imaging, to ensure the completion of detection tasks;
5. Simple installation; compact structure, easy to operate, maintain and expand;
6. High reliability, stable operation, suitable for various on-site operating conditions;
7. Based on PC platform, the system has strong scalability.
