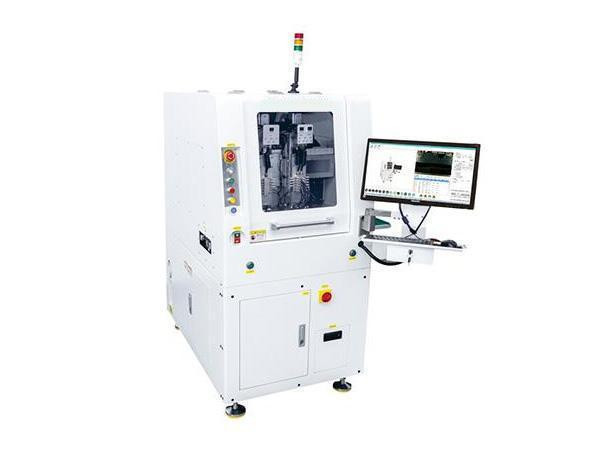

Miniaturization Online Pcb Router Machine Ysl-180m Upper Vacuum Power 2HP

Technical specifications:

1. Working range of sub-plate: 180mmx180mm

2.XYZ drive mode: AC servo motor

3. Number of movement axes: 7 axes

4. Program teaching mode: color CCD image intuitive teaching input

5. Operation interface: WIN7 window operation interface

6. Upper vacuum power: 2HP, lower dust collector power: 3HP (option 5HP)

7. Cutting spindle Sycotec (Germany) : MAX80000rpm (automatic tool change)

8.X-Y AC Servo speed: 0-1000mm/sec

9.Z AC Servo speed: 0-800mm/sec

10.X-Y repetition accuracy: ±0.01mm

11.Cutting accuracy: ±0.08mm

12.CCD camera calibration accuracy: ±0.02mm

13. Plate stress value: 300uε below

14. Tool diameter: 0.8-2.3mm

15.PCB board cutting thickness: 0.2mm-6.0mm

16. Main engine and dust collecting mechanical and electrical pressure: 220V 1φ and 3φ

17. Power consumption: 3.5KVA

18. Static elimination gun

19. Vision system: high resolution digital camera

20. Drive motor: AC brushless servo motor

21. Mechanical fetching and releasing arm: anti-static vacuum suction nozzle

22. Feeding mode: rail transportation

23. Discharging mode: belt conveying or vehicle output or rail conveying

24. Load shifting mode: vacuum suction nozzle adsorption load shifting

25. Flow direction: left → right

26. Program backup: USB interface

27. Control mode: special controller

28 Dust collection cabinet size: 640mm×785mm×1760mm(D×W×H)

29. Machine size: 1340mm×800mm×1528mm(D×W×H)

30. Weight of main engine + dust collector: 1000 KG

Device configuration

One.Claw type plate taking structure

1. Clamp and place the product split-plate fixture on the processing platform split-plate. After the processing is completed, clamp and place the split-plate fixture on the placement track and flow into the next procedure.

Two.Special product split-plate fixture into the track way

Three.Special product split-plate jig track discharge

1. After the product is cut, the material clamping claw will take the entire product jig and place the discharge track to transport the next production process.

Four.Automatic tool change mode

1. Miniaturized on-line board splitter adopts automatic tool change spindle imported from Germany. Save time, realize automation, reduce human factors, high precision, strong stability

2. Built-in four groups of milling cutter library, easy to replace the milling cutter automatically, to meet the needs of plate processing.

Five.Vacuum suction plate taking structure

1. Take and place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)

2. Transmission structure: X2 axis moves Z2, Z3 axis absorbs, AC servo motor control.

3. Board speed: 0-1000mm/sec (adjustable)

Six.Special product belt discharging mode

1. The vacuum sucker feeding shaft takes the cut product through one-time vacuum suction, places the special product fixture and transports it to the next production process.
