48V Real Time Virtual Network Device Load Balance For Network Traffic Monitor Analyzer

Network TAP Load Balance for Network Monitor and Analysis System Application

Working principle of network analysis system

Network Analysis System is a portable network analysis system, support wired and wireless network capture packet analysis, very convenient for network management personnel to install and deploy.Help network management personnel in various network problems, quickly and accurately find the root of the problem.It decodes, detects, analyzes and diagnoses all packets transmitted in the network, and helps network administrators eliminate network accidents, avoid security risks, improve network performance and increase network availability value.

- Quickly find and troubleshoot network faults;

- Find network bottleneck to improve network performance;

- Find and solve various network abnormal crisis, improve security;

- Manage resources, count and record the traffic and bandwidth of each node;

- Regulate the network, view the connection of various applications, services and hosts, monitor the network activities;

- Manage network applications.

The value of deploying NetTAP Network Packet Broker for your Network Load Balancing output

• Enhance visualization
• Visualization of the whole network
• Visualized resource allocation
• Precise fault location
• Unified traffic collection distribution
• Effectively eliminate blind spots
• Accurate identification of pipeline data
• Improve the efficiency of monitoring and analysis

Customer Case & Solution

Case:

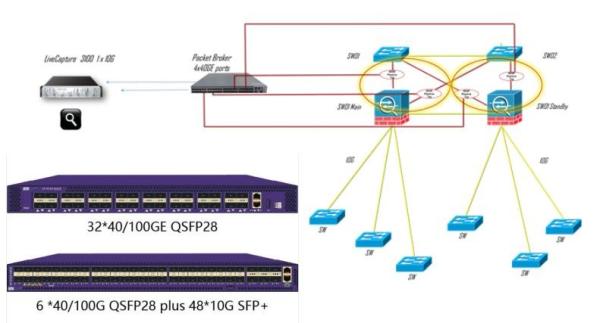

1 unit of 40g aggregator with MPO (SR4) multimode interface and 10G output
4 port of 40G Passive taps with MPO (SR4) multimode interface

As the total utilization at this moment is just only 10% of the total link capacity, I only need the aggregation capability of the packet broker. The output of the aggregator must be only 10G as the capacity enabled on the LiveCapture Appliance on only 10G. they will just upgrade the interface if the total traffic exceed 10G. The 4 ports are from the 40G switches they are connected redundant to each other. So I need at least 8 ports of 40G passive tap to inset on that network. The output of the 40G passive taps will be connected to the packet broker (40G interface). The PacketBroker will push the traffic to 10GE output which will be connected to the Network Monitoring Appliance (LiveCapture) 10G, I need atleast 2 x 10G ports. It will be created this set up as the existing budget will not be enough to cover the full 40G monitoring. They will invlest on a 10G Live Capture for now and will be upgraded once the traffic exceed 10G.

Solution:

Certificate

After years of developing, NetTAP has obtained high-tech enterprise certification, software product registration certificate, a number of product copyrights, product CNAS certification, IOS9001 certification, SAFETY (safety) certification, CE certification , EMC certification, etc.

NetTAP® (Full named Chengdu Shuwei Communication Technology Co., Ltd.)was established in 2007. Focusing on the Research and Development of Network TAPs/NPBs Communication Equipment, Data Security Analysis Equipment, which provides products and solutions in Big Data Acquisition, Data Storage, Data Monitoring, Data Processing and Data Analysis for Telecom, TV Broadcasting, Government, Education, IT, Finance, Bank, Hospital, Transportation, Energy, Power, Petroleum, Enterprise and other industries.

NetTAP® has launched various types of high-density devices such as: Fast Gigabit, 10 Gigabit Ethernet Network Traffic Replication, Aggregation, Distribution Network TAPs/NPBs (Network Packet Broker), intelligent Hybrid Traffic Network TAPs, 25G, 40G, 100G, etc. high density and Performance Network TAPs/NPBs(Network Packet Broker).

NetTAP® has a hardware production plant, all the communication products have complete Software and Hardware Independent Intellectual Property Rights, with complete Copyright Registration and Product Certification.

MATRIX NetInsight™ - A Fully Function Network Visibility Control Platform

MATRIX NetInsight™ Network System Value

1- Data Acquisition with centralized planning, eliminate monitoring blind spot

2- Free distribution of data, saving analysis of the overall investment

3- Data Security Control, Reduce the risk of disclosure

4- Overall Traffic visible, Abnormal Located more accurate, Fault analysis more useful

MATRIX NetInsight™ Function Architecture

1- User Interaction Layer

2- Big Data Analysis Layer

3- Data Storage Layer

4- Analysis Visibility Layer

5- Data Acquisition Layer

                                                                                       Zain Cloud Project of Saudi Arabia Telecom
