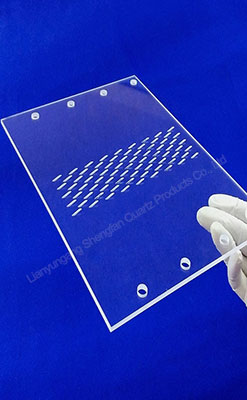

Transparent Quartz Glass Plate Heat Resistance Processing Laser Drilling With Hole

Transparent Quartz Glass Plate Heat Resistance Processing Laser Drilling With Hole

Transparent Quartz Glass Plate Heat Resistance Processing Laser Drilling With Hole
Transparent Quartz Glass Plate Heat Resistance Processing Laser Drilling With Hole
Categories Quartz Glass Plate
Brand Name: ShengFan
Model Number: SF221018001
Place of Origin: Jiangsu, China
MOQ: 1 PIECE
Price: $2.5 - $5.00/pieces
Supply Ability: 10000 Piece/Pieces per Month
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Type: Clear Quartz Plate
Application: Semiconductor, optical
Thickness: 0.5-100mm
Shape: Square
Processing Service: Bending, Welding, Punching, Cutting
Product Name: quartz plate
Material: SIO2>99.99%
Color: Clear Transparent
Density: 2.2g/cm3
Size: Customized
Working Temparature: 1150℃
Hardness: Morse 6.5
Melting point: 1732℃
Strain point: 1100℃
Annealing point: 1180℃
Port: shanghai and Qindao port
Contact Now
Company Info.
Lianyungang Shengfan Quartz Product Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Transparent Quartz Glass Plate Heat Resistance Processing Laser Drilling With Hole

Product Description
Shengfan Quartz plate characteristic
*Brand
shengfanquartz
*SIO2
99.99%
*Density
2.2(g/cm³)
*Degree of hardness moh’ scale
6.6
*Melting point
1732℃
* Working temperature
1100℃
*Annealing point
1180℃
*Softening point
1630℃
Setting Information
Color
Transparent
Shape
Circular / Round
Standard
JGS1,JGS2,JGS3
Material
99.99% sio2
Diameter
1-800mm
Thickness
0.2-100mm
Application
Optics quartz windows
Density
6.6
Light Transmittance
>92%
Hardness
Mose 6.5
Resistance Value
1000 times than ordinary glass
Product Details
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.
Density
2.2x103 kg/m3
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Design Compressive Strength
Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Softening Point
1730°C
Annealing Point
1215°C
JGS1(ZS-1)
JGS2(ZS-2)
JGS3(HS)
Spectral characteristics
180-2500nm
200-2500nm
260-3500nm
The average transmittance
90%
85%
85%
Bubble class
0
2
2
Birefringence
1-2
1-2
1-2
Grain structure
1
2
2
Fringe
1-2
2
2
Uniformity
1-2
2
2
Fluorescence
1
2
2
Radiation Performance
Does not change clolor
Sight discoloration
Change color
Details Images
Products range:

Products range:

1.Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm 2.Quartz rod (1.5-80mm) 3.Quartz plate (various shapes and specification,scrubs,Transparency,drilling) 4.Quartz instruments (flask,test tube,beaker, quartz boat) 5.Processing all type of special shaped and customized instruments.
production flow
Packing & Delivery
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
