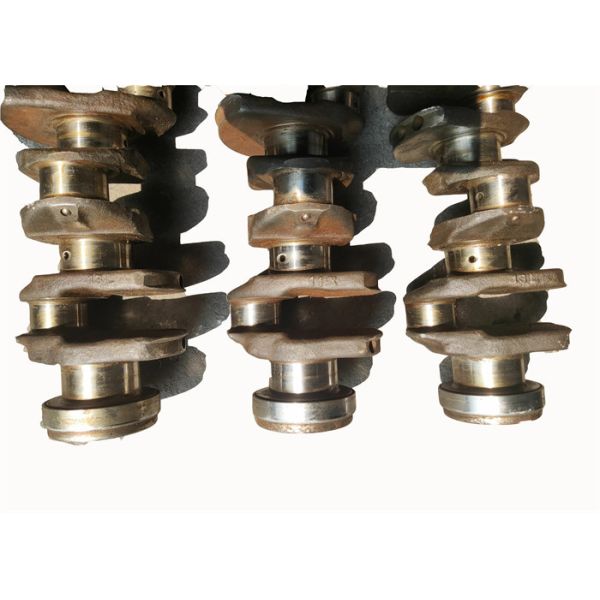

D1105 D1005 Second Hand Crankshaft For Excavator KX175 KX183 - 3 1G065 - 23010

D1105 D1005 Second Hand Crankshaft For Excavator KX175 KX183 - 3 1G065 - 23010

Specification

Description

Parts of Crankshaft
Following are the main parts of crankshaft with its diagram:

1.Crankpin
2.Main journals
3.Crank web
4.Counterweights
5.Thrust washers
6.Oil passage and oil seals
7.Flywheel mounting flange

1. Crank Pin
The crankpin is a mechanical part of an engine. Which allows the connecting rod to be attached to the crankshaft very firmly.

The surface of the crankpin is cylindrical, to give the rotative force to the large end of the connecting rod. These are also known as connecting rod journals.

2. Main Journals
Journals have attached to the engine block. These bearings hold the crankshaft and provide it to rotate inside the engine block. This bearing is such as a plain bearing or journal bearings. The main bearings vary from engine to engine, often according to the forces given by the engine.

3. Crank Web
The Crank web is the most essential part of the crankshaft. Crank web connects the crankshaft to the main bearing journals.

4. Counterweights
The counterweights are a type of weight, that applies opposite force, which provides balance and stability to the crankshaft. These are mounted on the crank web.

The reason for installing counterweights in the crankshaft is, they can eliminate the reaction caused by rotation. And it is very helpful for achieving the higher RPM and makes the engine run easily.

5. Thrust Washers
At some points, two or more thrust washers are provided to stop the crankshaft from moving lengthways. These thrust washers assemble among the machined surfaces in the web and the crankshaft saddle.

With the help of thrust washers, it can be easily maintained the gap and helps to reduce the lateral movement of the crankshaft. In many engines, these are made as part of the main bearings, usually, older types, use separate washers.

6. Oil Passage and Oil Seals
Crankshaft oil passage passes oil from main bearing journals to the big end journals. Normally the hole is drilled on the crank web. When the crankpin is in an upward position and combustion forces push the connecting rod to a downward position, it allows oil to enter between journal and bearing.

The crankshaft has some extend beyond the crankcase on both ends. This causes oil to leak from these ends. So, preventing oil from these openings, oil seals are provided. There are two main oil seals are connected at the front end and rear end.

Beijing Silk Road Enterprise Management Services Co.,LTD is a professional company focus on Car Parts business. Beijing Silk Road also will responsible with exporting and logistic business.

Founded in 2009, Our company is a leading manufacturer and supplier of Car Spare Parts in China.
